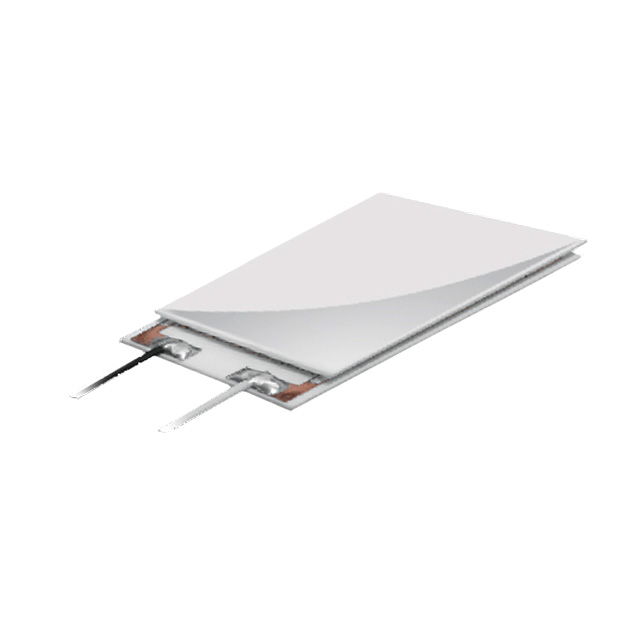

RC6-6-01LS
ActiveMarlow Industries, Inc.
TEM 30X30X3.91MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RC6-6-01LS
ActiveMarlow Industries, Inc.
TEM 30X30X3.91MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RC6-6-01LS |
|---|---|
| Current - Max [Max] | 5.6 A |
| Delta Tmax @ Th | 66 °C |
| Features | Lapped, Sealed, Lead Wires |
| Height [z] | 3.91 mm |
| Number of Stages | 1 |
| Operating Temperature | 130 °C |
| Qmax @ Th | 30 W |
| Resistance | 1.2 Ohms |
| Size / Dimension [x] | 34.01 mm |
| Size / Dimension [y] | 30 mm |
| Voltage - Max [Max] | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.42 | |
| 5 | $ 18.32 | |||
Description
General part information
RC6-6 Series
Peltier Module 30.0W @ 27°C 5.6 A 130°C
