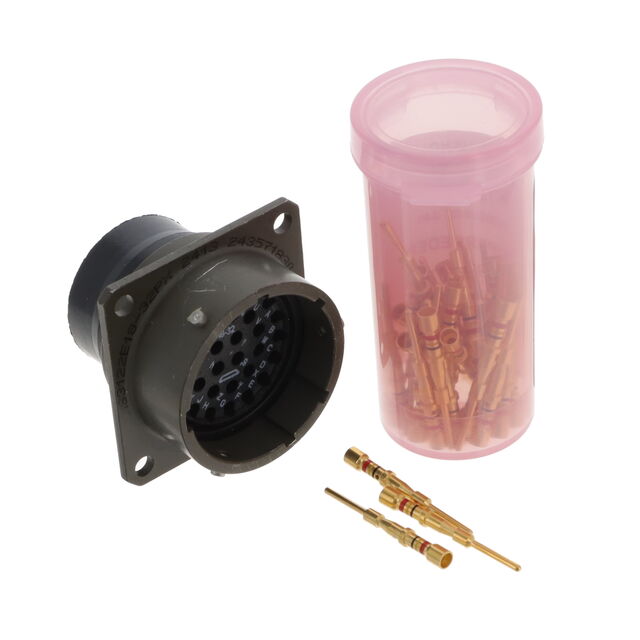

MS3122E18-32PX

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Search across all available documentation for this part.

Documents10-101949-010 Datasheet

MS3122E18-32PX

Active

Amphenol Industrial Operations

MIL-26482 MS/PT/CMB RECEPT

Deep-Dive with AI

Documents10-101949-010 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3122E18-32PX

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Grade	Military
Ingress Protection	Environment Resistant
Insert Material	Neoprene
Mounting Feature	Flange
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	X
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	32
Shell Size - Insert [Min]	18
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 VAC

MS3122E18 Series

Part	Fastening Type	Primary Material	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Mounting Feature	Color	Qualification	Ingress Protection	Shielding	Contact Finish - Mating	Grade	Termination	Contact Material	Shell Finish	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Shell Material	Orientation	Insert Material	Current Rating (Amps)	Voltage Rating	Shell Size - Insert	Number of Positions	Note	Housing Color	Contact Size	Type	Contact Type	Contact Shape
Amphenol Industrial Operations MS3122E18-32S	Bayonet Lock	Metal	Receptacle Female Sockets	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Flange	Olive Drab	MIL-DTL-26482 Series I	Environment Resistant	Unshielded	Gold	Military	Crimp	Copper Alloy	Olive Drab Chromate over Cadmium	32	18	Aluminum	N	Neoprene
Amphenol Industrial Operations MS3122E18-32PX	Bayonet Lock	Metal	Male Pins Receptacle	-55 °C	125 °C	Aerospace Industrial Instrumentation Mass Transit Military	Flange	Olive Drab	MIL-DTL-26482 Series I	Environment Resistant	Unshielded	Gold	Military	Crimp	Copper Alloy	Olive Drab Chromate over Cadmium	32	18	Aluminum	X	Neoprene	7.5 A	600 VAC
Amphenol Industrial Operations MS3122E18-11PY	Bayonet Lock	Metal	Male Pins Receptacle	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Flange	Olive Drab	MIL-DTL-26482 Series I	Environment Resistant	Unshielded	Gold	Military	Crimp	Copper Alloy	Olive Drab Chromate over Cadmium			Aluminum	Y	Neoprene			18-11	11
Amphenol Industrial Operations MS3122E18-11S	Bayonet Lock	Metal	Receptacle Female Sockets	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Flange	Olive Drab	MIL-DTL-26482 Series I	Environment Resistant	Unshielded	Gold	Military	Crimp	Copper Alloy	Olive Drab Chromate over Cadmium			Aluminum	N	Neoprene			18-11	11
Amphenol Industrial Operations MS3122E18-32P(LC)
Amphenol Industrial Operations MS3122E18-32SW	Bayonet Lock	Metal	Receptacle Female Sockets	-55 °C	125 °C	Aerospace Communication Systems Industrial Instrumentation Mass Transit Military	Flange	Olive Drab	MIL-DTL-26482 Series I	Environment Resistant	Unshielded	Gold	Military	Crimp	Copper Alloy	Olive Drab Chromate over Cadmium	32	18	Aluminum	W	Neoprene
Amphenol Industrial Operations MS3122E18-32PY
Amphenol Industrial Operations MS3122E18-32SLC	Bayonet Lock		Receptacle Housing	-55 °C	125 °C		Flange		MIL-DTL-26482 Series I	Environment Resistant	Unshielded		Military			Chromate over Cadmium	32	18	Aluminum	N	Neoprene					Contacts Not Included	Olive Drab	20	For Female Sockets	Crimp	Circular
Amphenol Industrial Operations MS3122E18-30S
Amphenol Industrial Operations MS3122E18-32PW

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.82
		10	$ 86.09
		25	$ 82.78
		50	$ 80.02
		100	$ 75.61

Description

General part information

MS3122E18 Series

32 Position Circular Connector Receptacle, Male Pins Crimp
