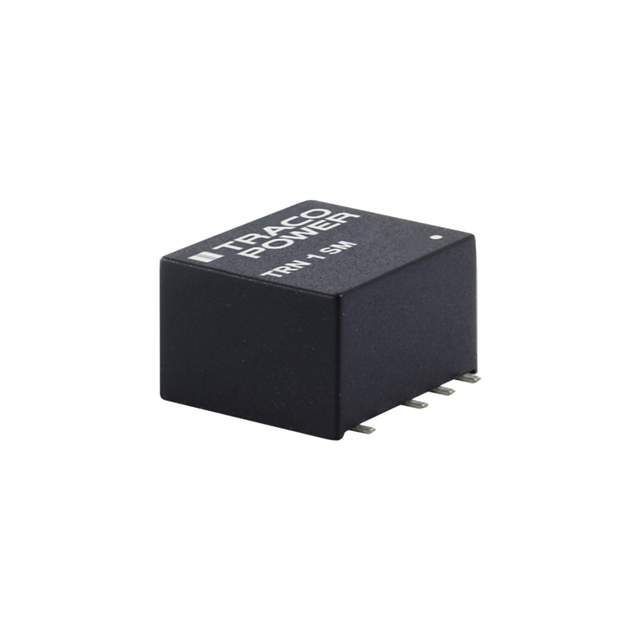

TRN 1-0513SM

Active

Traco Power

DC DC CONVERTER 15V 1.1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TRN 1-0513SM

Active

Traco Power

DC DC CONVERTER 15V 1.1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TRN 1-0513SM

Applications	ITE (Commercial)
Current - Output (Max) [Max]	70 mA
Features	SCP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Package / Case	7-SMD Module, 6 Leads
Power (Watts)	1.1 W
Size / Dimension [x]	11.9 mm
Size / Dimension [x]	0.47 in
Size / Dimension [y]	11.3 mm
Size / Dimension [y]	0.44 in
Size / Dimension [z]	8 mm
Size / Dimension [z]	0.31 in
Type	Isolated Module
Voltage - Input (Max) [Max]	13.2 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V

TRN 1 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Applications	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Isolation	Current - Output (Max) [Max]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Outputs	Efficiency	Package / Case	Voltage - Input (Min) [Min]	Features	Type	Power (Watts)	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
Traco Power TRN 1-2410	90 °C	-40 °C	Through Hole	ITE (Commercial)	3.3 V	36 V	1.6 kV	300 mA	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	1	77 %	5-SIP Module 4 Leads	18 V	SCP	Isolated Module
Traco Power TRN 1-0513SM	90 °C	-40 °C	Surface Mount	ITE (Commercial)	15 V	13.2 V	1.6 kV	70 mA	0.31 in	8 mm	11.9 mm	11.3 mm	0.47 in	0.44 in	1		7-SMD Module 6 Leads	4.5 V	SCP	Isolated Module	1.1 W
Traco Power TRN 1-2413SM	90 °C	-40 °C	Surface Mount	ITE (Commercial)	15 V	36 V	1.6 kV	70 mA	0.31 in	8 mm	11.9 mm	11.3 mm	0.47 in	0.44 in	1	83 %	7-SMD Module 6 Leads	18 V	SCP	Isolated Module	1.1 W
Traco Power TRN 1-1212	90 °C	-40 °C	Through Hole	ITE (Commercial)	12 V	18 V	1.6 kV	90 mA	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	1	81 %	5-SIP Module 4 Leads	9 V	SCP	Isolated Module	1.1 W
Traco Power TRN 1-1210	90 °C	-40 °C	Through Hole	ITE (Commercial)	3.3 V	18 V	1.6 kV	300 mA	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	1	77 %	5-SIP Module 4 Leads	9 V	SCP	Isolated Module
Traco Power TRN 1-4812	90 °C	-40 °C	Through Hole	ITE (Commercial)	12 V	75 V	1.6 kV	90 mA	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	1	80 %	5-SIP Module 4 Leads	36 V	SCP	Isolated Module	1.1 W
Traco Power TRN 1-2421	90 °C	-40 °C	Through Hole	ITE (Commercial)	5 V	36 V	1.6 kV		0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	2	79 %	5-SIP Module	18 V	SCP	Isolated Module		100 mA	100 mA	-5 V
Traco Power TRN 1-0522SM	90 °C	-40 °C	Surface Mount	ITE (Commercial)	12 V	13.2 V	1.6 kV		0.31 in	8 mm	11.9 mm	11.3 mm	0.47 in	0.44 in	2	83 %	7-SMD Module	4.5 V	SCP	Isolated Module	1.1 W	45 mA	45 mA	-12 V
Traco Power TRN 1-4815	90 °C	-40 °C	Through Hole	ITE (Commercial)	24 V	75 V	1.6 kV	45 mA	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	1	81 %	5-SIP Module 4 Leads	36 V	SCP	Isolated Module	1.1 W
Traco Power TRN 1-1215	90 °C	-40 °C	Through Hole	ITE (Commercial)	24 V	18 V	1.6 kV	45 mA	0.43 "	11 mm	11.9 mm	7.7 mm	0.47 in	0.3 "	1	83 %	5-SIP Module 4 Leads	9 V	SCP	Isolated Module	1.1 W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	10	$ 12.47

Description

General part information

TRN 1 Series

Isolated Module DC DC Converter 1 Output 15V 70mA 4.5V - 13.2V Input
