ED950/3

Active

On Shore Technology Inc.

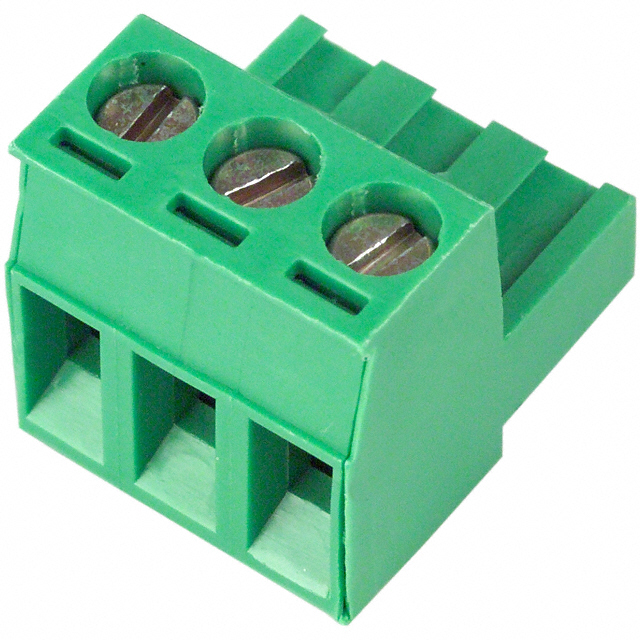

TERM BLOCK PLUG 3POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsED Part Number Breakdown Datasheet

ED950/3

Active

On Shore Technology Inc.

TERM BLOCK PLUG 3POS STR 5MM

Deep-Dive with AI

DocumentsED Part Number Breakdown Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ED950/3

Color	Green
Contact Material	Copper
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591 in
Insulation Height	15 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Screw Size	M3
Termination Style	Screw
Torque - Screw	4.4 Lb-In
Torque - Screw	0.5 Nm
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	22 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Gauge or Range - mm˛	2.5 mm˛
Wire Strip Length	6 mm

ED950 Series

Part	Contact Material	Material Flammability Rating	Wire Strip Length	Termination Style	Type	Mounting Type	Positions Per Level	Number of Positions	Torque - Screw	Torque - Screw	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Wire Gauge or Range - mm²	Housing Material	Color	Pitch [x]	Pitch [x]	Insulation Height	Insulation Height	Screw Size	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge or Range - mm˛	Number of Positions
On Shore Technology Inc. ED950/9	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	9	9	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1	2.5 mm²	Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C
On Shore Technology Inc. ED950/15	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	15	15	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1	2.5 mm²	Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C
On Shore Technology Inc. ED950/3	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	3		4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1		Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C	2.5 mm˛
On Shore Technology Inc. ED950/2	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	2	2	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1		Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C	2.5 mm˛
On Shore Technology Inc. ED950/14	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	14	14	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1	2.5 mm²	Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C
On Shore Technology Inc. ED950/12	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	12	12	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1	2.5 mm²	Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C
On Shore Technology Inc. ED950/11BK	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	11	11	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1		Polyamide (PA) Nylon	Black	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C	2.5 mm˛
On Shore Technology Inc. ED950/16	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	16		4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1		Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C	2.5 mm˛	16
On Shore Technology Inc. ED950/20	Copper	UL94 V-0	6 mm	Screw	Plug Female Sockets	Free Hanging (In-Line)	20	20	4.4 Lb-In	0.5 Nm	300 V	12 AWG	22 AWG	1		Polyamide (PA) Nylon	Green	5 mm	0.197 in	0.591 in	15 mm	M3	-30 ░C	105 ░C	2.5 mm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.54
		10	$ 1.92
		25	$ 1.78
		50	$ 1.60
		200	$ 1.56
		400	$ 1.37
		600	$ 1.25
		1000	$ 1.13
		5000	$ 1.00

Description

General part information

ED950 Series

3 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
