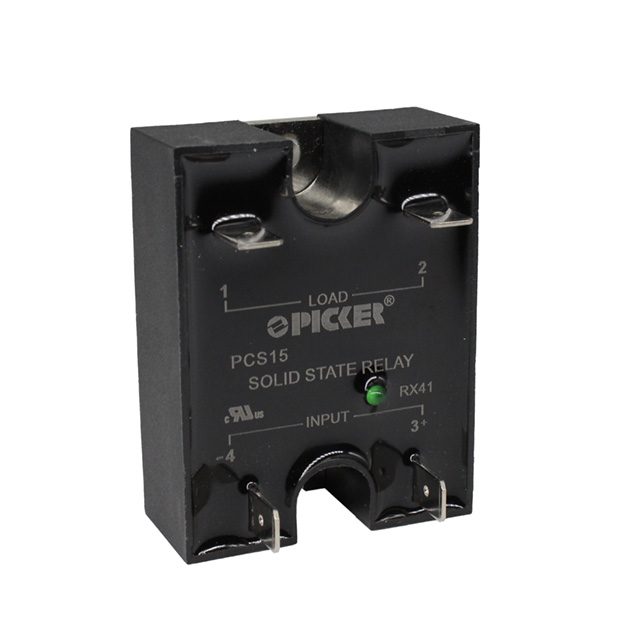

PCS15-24A-240A-10ZYLQ

Unknown

Picker Components

SSR RELAY 10A 48~280VAC QUICK CO

Search across all available documentation for this part.

Unknown

Picker Components

SSR RELAY 10A 48~280VAC QUICK CO

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Type	Load Current	Termination Style	Package / Case	Supplier Device Package
Picker Components PCS15-24A-240A-10ZYLQ	48 V	280 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	10 A	Quick Connect - 0.250" (6.3mm)
Picker Components PCS15-24A-240A-10ZL	48 V	280 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	10 A	Screw Terminal
Picker Components PCS15-24A-380A-10ZLQ	48 V	440 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	10 A	Quick Connect - 0.250" (6.3mm)
Picker Components PCS15-24A-240A-40ZYLQ	48 V	280 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	40 A	Quick Connect - 0.250" (6.3mm)
Picker Components PCS15-24A-240A-10ZLQ	48 V	280 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	10 A	Quick Connect - 0.250" (6.3mm)	Hockey Puck	Hockey Puck
Picker Components PCS15-24A-240A-40ZYL	48 V	280 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	40 A	Screw Terminal
Picker Components PCS15-24A-380A-10ZYLQ	48 V	440 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	10 A	Quick Connect - 0.250" (6.3mm)
Picker Components PCS15-24A-380A-40ZYL	48 V	440 V	-30 ░C	80 C	Chassis Mount	AC Zero Cross	40 A	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State SPST-NO (1 Form A)
