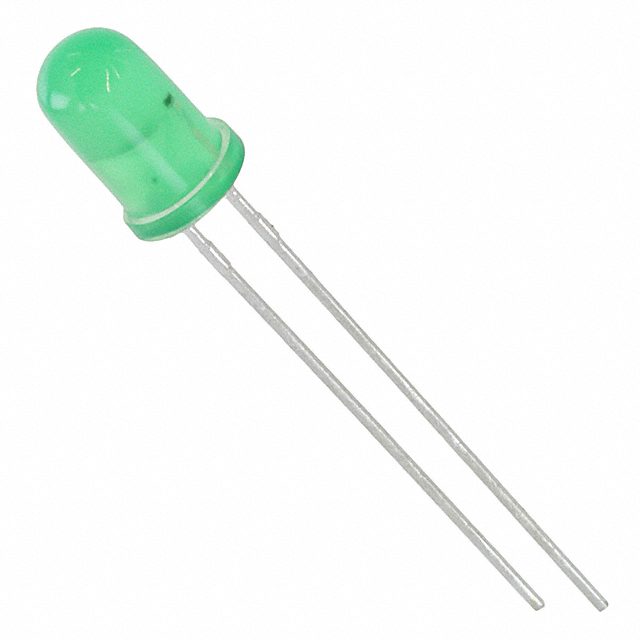

WP57GGD

Active

Kingbright

LED GREEN DIFFUSED T-1 3/4 T/H

Search across all available documentation for this part.

Active

Kingbright

LED GREEN DIFFUSED T-1 3/4 T/H

Technical Specifications

Parameters and characteristics for this part

Part	Millicandela Rating	Height (Max) [Max] [z]	Lens Style	Viewing Angle	Wavelength - Dominant [custom]	Size / Dimension [diameter]	Supplier Device Package	Color	Lens Color	Package / Case	Mounting Type	Configuration	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Size	Lens Size	Wavelength - Peak	Current - Test	Wavelength - Dominant	Current - Test
Kingbright WP57EYW	10 mcd 14 mcd	8.6 mm	Round with Domed Top	60 °	588 nm 617 nm	5 mm	T-1 3/4	Red Yellow	White	Radial	Through Hole	Bidirectional	2 V 2.1 V	Diffused	T-1 3/4	5 mm	590 nm 627 nm	20mA Red 20mA Yellow
Kingbright WP57GGD	20 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Green	Green	Radial	Through Hole	Standard	2.2 V	Diffused	T-1 3/4	5 mm	565 nm		568 nm	20 mA
Kingbright WP57GYW	10 mcd 30 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Green Yellow	White	Radial	Through Hole	Bidirectional	2.1 V 2.2 V	Diffused	T-1 3/4	5 mm	565 nm 590 nm		568 nm 588 nm	20 mA 20 mA
Kingbright WP57YYD	12 mcd	8.6 mm	Round with Domed Top	60 °		5 mm	T-1 3/4	Yellow	Yellow	Radial	Through Hole	Standard	2.1 V	Diffused	T-1 3/4	5 mm	590 nm		588 nm	20 mA
Kingbright WP57EGW	14 mcd 30 mcd	8.6 mm	Round with Domed Top	30 °		5 mm	T-1 3/4	Green Red	White	Radial	Through Hole	Bidirectional	2 V 2.2 V	Diffused	T-1 3/4	5 mm	565 nm 627 nm		568 nm 617 nm	20 mA 20 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Green 568nm LED Indication - Discrete 2.2V Radial
