APM-MAX-M23-PL-4B
ActivePANEL METER, PROCESS, CURRENT, 0 TO 10 VDC, 0 TO 5 A, 4 DIGITS AND GRAPH, POSITIVE LCD, TCP/IP RTU
Deep-Dive with AI
Search across all available documentation for this part.
APM-MAX-M23-PL-4B
ActivePANEL METER, PROCESS, CURRENT, 0 TO 10 VDC, 0 TO 5 A, 4 DIGITS AND GRAPH, POSITIVE LCD, TCP/IP RTU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | APM-MAX-M23-PL-4B |
|---|---|
| Display Type | LCD - Black Characters, Quad Color Backlight |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Measuring Range [Max] | 10 V, 5 A, 400 Hz |
| Measuring Range [Min] | 0 A, 0 kHz, 0 V |
| Measuring Type | Process |
| Number of Characters Per Row | 4 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Output Type | Analog, Digital |
| Panel Cutout Dimensions [x] | 68.07 mm |
| Panel Cutout Dimensions [y] | 68.07 mm |
| Termination Style | Screw Terminal |
| Type | Process Meter |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
APM-MAX Series

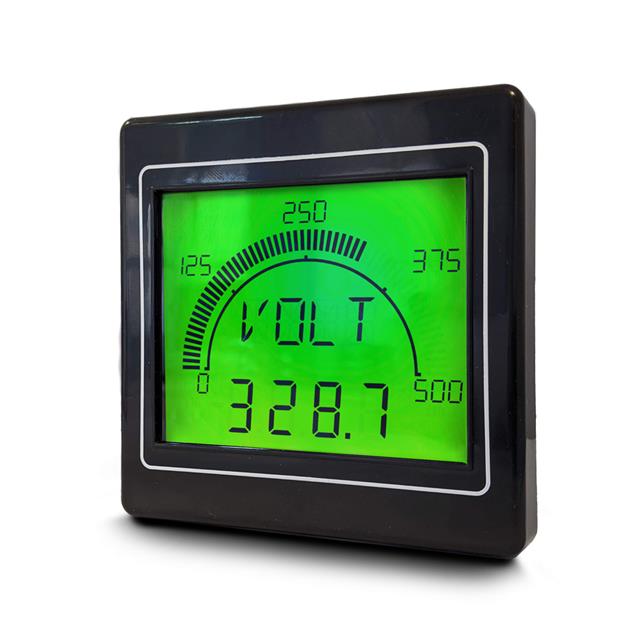

APM-MAX-M23-PL-4B is an APM MAX M23 positive LCD advanced panel meter. The APM-MAX-M23 is a multifunctional meter for low-voltage applications, measuring either 0-50mA DC or 0-500mV DC with a shunt. The M23 offers a large screen with a small cut-out, featuring a 60-segment bar graph, a 4-digit display, a starburst messaging area. The unique display combines readability and precision with a color-changing RGB backlight for real-time visual alerts, delivering clear reading monitoring and measurement. The M23 is user-configurable, with programmable scaling, range, alarm thresholds, and backlight color. It has two digital outputs, a 4-20mA analog output, and supports MODBUS® TCP/IP and RTU for seamless integration and communication with other systems. The positive LCD displays black figures on a color-changing background for bright settings.
