61-6461.4067

Active

EAO

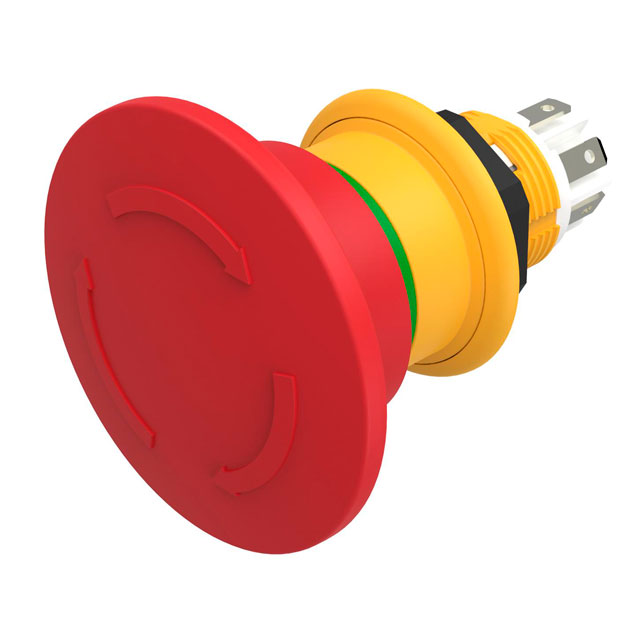

SWITCH E-STOP TWIST RESET

Search across all available documentation for this part.

Active

EAO

SWITCH E-STOP TWIST RESET

Technical Specifications

Parameters and characteristics for this part

Specification	61-6461.4067

Circuit	3PST-NC
Ingress Protection	IP69K, IP67
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	16 mm
Reset Operation	Twist
Switch Function	On-Off
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm

Part	Panel Cutout Dimensions [diameter]	Ingress Protection	Termination Style	Termination Style	Termination Style	Mounting Type	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Reset Operation
EAO 61-6461.4067	16 mm	IP67 IP69K	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	On-Off	3PST-NC	55 °C	-25 °C	Twist
EAO 61-6461.4047	16 mm	IP67 IP69K	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	On-Off	SPST-NC	55 °C	-25 °C	Twist
EAO 61-6461.4097	16 mm	IP67 IP69K	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Off-On On-Off	3PST-2NO/1NC	55 °C	-25 °C	Twist
EAO 61-6461.4057	16 mm	IP67 IP69K	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	On-Off	DPST-NC	55 °C	-25 °C	Twist
EAO 61-6461.4087	16 mm	IP67 IP69K	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	Off-On On-Off	3PST-2NC/1NO	55 °C	-25 °C	Twist

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SWITCH E-STOP TWIST RESET
