C2PXS-1436G

Active

CW Industries

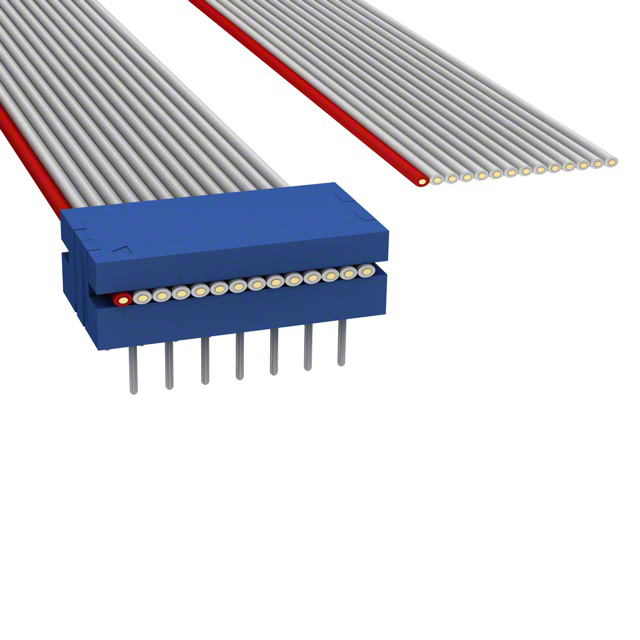

DIP CABLE - CDP14S/AE14G/X

Search across all available documentation for this part.

Active

CW Industries

DIP CABLE - CDP14S/AE14G/X

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Contact Finish Thickness	Color	Number of Positions	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish	Shielding	Length	Length	Length	Cable Termination	Usage	Pitch - Cable	Pitch - Cable	Connector Type	Length [x]	Length [x]	Number of Positions
CW Industries C2PXS-1406M	2.54 µm	100 µin	Multiple Ribbon	14	0.1 in	2.54 mm	2	Tin	Unshielded	152.4 mm	6 "	0.5 '	IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable
CW Industries C2PXS-1436G	2.54 µm	100 µin		14	0.1 in	2.54 mm	2	Tin	Unshielded				IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable	3 ft	914.4 mm
CW Industries C2PXS-1436M	2.54 µm	100 µin	Multiple Ribbon	14	0.1 in	2.54 mm	2	Tin	Unshielded				IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable	3 ft	914.4 mm
CW Industries C2PXS-1418M	2.54 µm	100 µin	Multiple Ribbon	14	0.1 in	2.54 mm	2	Tin	Unshielded				IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable	1.5 ft	457.2 mm
CW Industries C2PXS-1636M	2.54 µm	100 µin	Multiple Ribbon		0.1 in	2.54 mm	2	Tin	Unshielded				IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable	3 ft	914.4 mm	16
CW Industries C2PXS-1606M	2.54 µm	100 µin	Multiple Ribbon		0.1 in	2.54 mm	2	Tin	Unshielded	152.4 mm	6 "	0.5 '	IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable			16
CW Industries C2PXS-1606G	2.54 µm	100 µin			0.1 in	2.54 mm	2	Tin	Unshielded	152.4 mm	6 "	0.5 '	IDC	Board In Socket (0.3")	0.05 "	1.27 mm	DIP to Cable			16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

14 Position Cable Assembly Rectangular DIP to Cable 3.00' (914.40mm)
