CDB42L52

Cirrus Logic Inc.

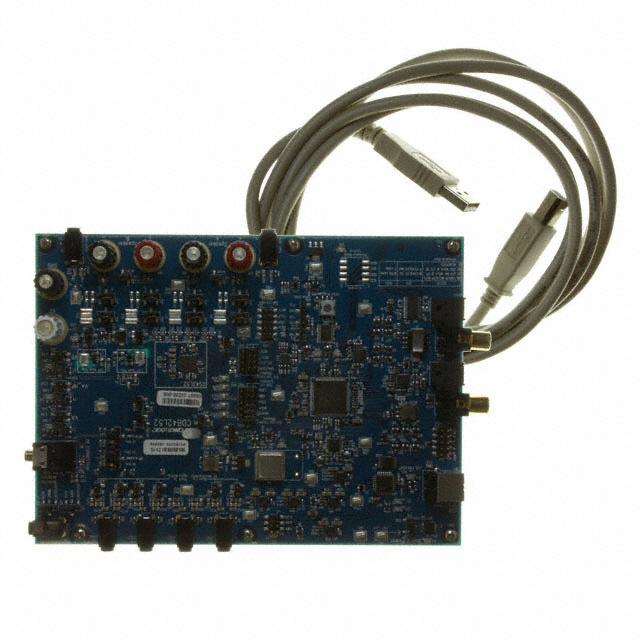

EVAL BOARD FOR CS42L52

Search across all available documentation for this part.

Cirrus Logic Inc.

EVAL BOARD FOR CS42L52

Technical Specifications

Parameters and characteristics for this part

Specification	CDB42L52

Contents	Board(s)
Embedded	Yes, FPGA / CPLD
Function	CODEC
Primary Attributes	4
Primary Attributes	S/PDIF Inputs and Outputs, Stereo Line and Speaker Outputs
Secondary Attributes	Graphical User Interface (GUI), I2C/SPI/USB Interface(s)
Supplied Contents	Board(s)
Type	Audio
Utilized IC / Part	CS42L52

Part	Supplied Contents	Embedded	Type	Primary Attributes	Primary Attributes	Function	Contents	Secondary Attributes	Utilized IC / Part	Operating Temperature [Max]	Operating Temperature [Min]	Resolution (Bits)	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Supplier Device Package	Dynamic Range, ADCs / DACs (db) Typ	Voltage - Supply, Digital [Max]	Voltage - Supply, Digital [Min]	Mounting Type	Number of ADCs / DACs [custom]	Number of ADCs / DACs [custom]	Data Interface
Cirrus Logic Inc. CDB42L52	Board(s)	Yes FPGA / CPLD	Audio	4	S/PDIF Inputs and Outputs Stereo Line and Speaker Outputs	CODEC	Board(s)	Graphical User Interface (GUI) I2C/SPI/USB Interface(s)	CS42L52
Cirrus Logic Inc. CRD42L52	Board(s)		Audio		2 Stereo Analog Inputs S/PDIF Transmitter and Receiver Stereo Line and Headphone Outputs	CODEC	Board(s)	Graphical User Interface (GUI)	CS42L52
Cirrus Logic Inc. CS42L52-CNZR			Stereo Audio							85 °C	-40 °C	24 b	1.65 V	2.63 V	40-QFN-EP (6x6)	98 db 99 db	2.63 V	1.65 V	Surface Mount	1	1	Serial
