M3BRK-1036J

Active

3M (TC)

IDC CABLE - MSR10K/MC10G/MPR10K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Datasheet +1

M3BRK-1036J

Active

3M (TC)

IDC CABLE - MSR10K/MC10G/MPR10K

Deep-Dive with AI

Documents3365 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3BRK-1036J

Cable Termination	IDC
Connector Type	Socket to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Strain Relief (Socket), Strain Relief (Plug), Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	10
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3BRK Series

Part	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]	Features	Number of Positions	Color	Cable Termination	Pitch - Cable	Pitch - Cable	Contact Finish Thickness	Contact Finish Thickness	Shielding	Number of Rows	Contact Finish	Length	Length	Length	Length
3M (TC) M3BRK-5018R	Socket to Plug	0.1 in	2.54 mm	457.2 mm	1.5 ft	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	50	Multiple Ribbon	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold
3M (TC) M3BRK-4018R	Socket to Plug	0.1 in	2.54 mm	457.2 mm	1.5 ft	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	40	Multiple Ribbon	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold
3M (TC) M3BRK-4060K	Socket to Plug	0.1 in	2.54 mm			Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	40	Multiple Twisted Pair (Flat)	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold	1.52 m	5 '
3M (TC) M3BRK-2018R	Socket to Plug	0.1 in	2.54 mm	457.2 mm	1.5 ft	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	20	Multiple Ribbon	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold
3M (TC) M3BRK-6006J	Socket to Plug	0.1 in	2.54 mm			Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	60		IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold	152.4 mm		6 "	0.5 '
3M (TC) M3BRK-5060K	Socket to Plug	0.1 in	2.54 mm			Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	50	Multiple Twisted Pair (Flat)	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold	1.52 m	5 '
3M (TC) M3BRK-3440K	Socket to Plug	0.1 in	2.54 mm	1.02 m	3.34 ft	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	34	Multiple Twisted Pair (Flat)	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold
3M (TC) M3BRK-3406J	Socket to Plug	0.1 in	2.54 mm			Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	34		IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold	152.4 mm		6 "	0.5 '
3M (TC) M3BRK-1036J	Socket to Plug	0.1 in	2.54 mm	914.4 mm	3 ft	Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	10		IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold
3M (TC) M3BRK-1020K	Socket to Plug	0.1 in	2.54 mm			Polarizing Key Strain Relief (Plug) Strain Relief (Socket)	10	Multiple Twisted Pair (Flat)	IDC	0.05 "	1.27 mm	0.76 Ám	30 Áin	Unshielded	2	Gold	508 mm	1.67 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.96
		10	$ 12.27
		25	$ 11.10
		50	$ 10.31
		100	$ 9.59
		250	$ 8.74
		500	$ 8.16
		1000	$ 7.65

Description

General part information

M3BRK Series

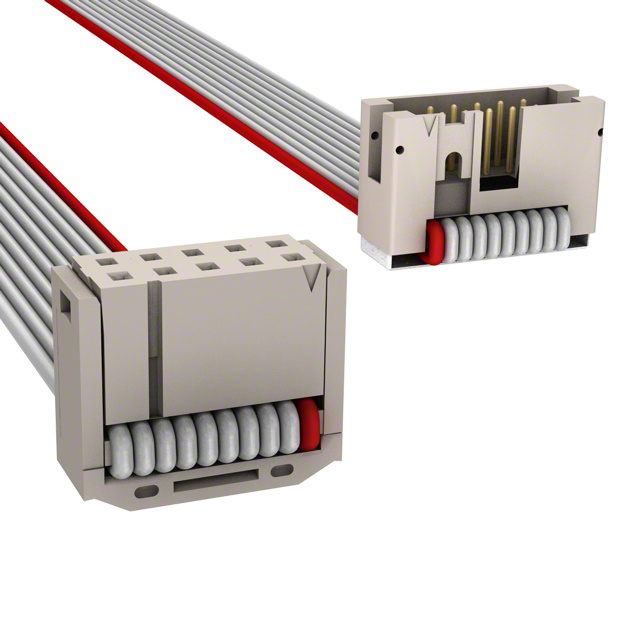

10 Position Cable Assembly Rectangular Socket to Plug 3.00' (914.40mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

4600 Series Drawing

Datasheet
