SN250V

Active

Comet America, LP

PT1000TR160/0 PROBE FOR COMETEO

Search across all available documentation for this part.

Active

Comet America, LP

PT1000TR160/0 PROBE FOR COMETEO

Technical Specifications

Parameters and characteristics for this part

Specification	SN250V

Conductor Type	Non-Grounded
Diameter - Protective Tube [diameter]	5.7 mm
Element Type	Pt1000
Length - Lead Wire	250 mm
Length - Lead Wire	9.84 in
Length - Protective Tube [x]	20 mm
Temperature Range [Max]	80 °C
Temperature Range [Min]	-40 °F
Terminal Type	Eyelet

Part	Terminal Type	Conductor Type	Length - Protective Tube [x]	Temperature Range [Max]	Temperature Range [Min]	Diameter - Protective Tube [diameter]	Element Type	Length - Lead Wire	Length - Lead Wire
Comet America, LP SN250V	Eyelet	Non-Grounded	20 mm	80 °C	-40 °F	5.7 mm	Pt1000	250 mm	9.84 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

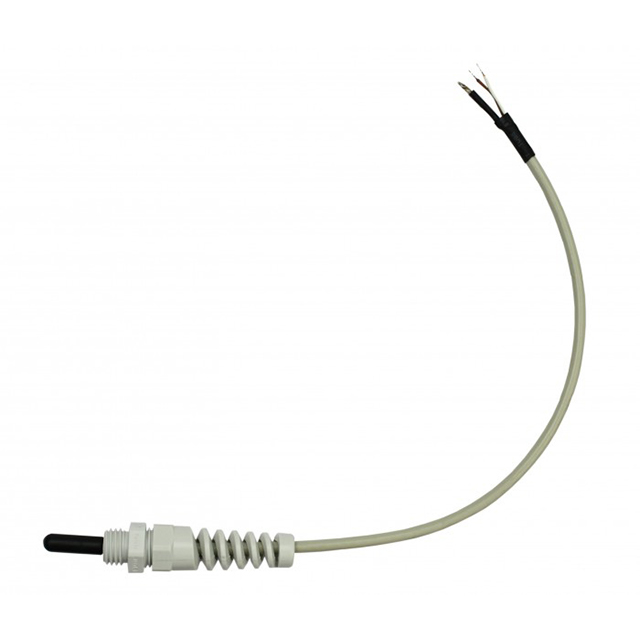

Pt1000 Temperature Sensor -40°C ~ 80°C Non-Grounded Eyelet
