A22NS-3MB-NBA-G101-NN

Active

Omron Electronics Inc-EMC Div

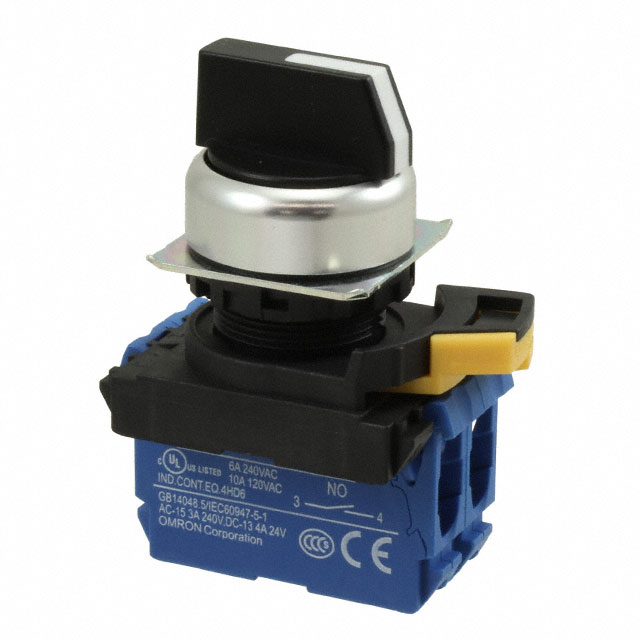

SWITCH SELECT 3POS DPST 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A22NS-3MB-NBA-G101-NN

Active

Omron Electronics Inc-EMC Div

SWITCH SELECT 3POS DPST 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A22NS-3MB-NBA-G101-NN

Approval Agency	CCC, cULus, CE, TUV
Circuit	DPST-NO
Current Rating (Amps)	10 A
Depth Behind Flange	45.3 mm
Electrical Life	300000 Cycles
Features	Bezel - Round, Black Knob
Illumination	Non-Illuminated
Ingress Protection	IP66
Mechanical Life	300000 Cycles
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm
Switch Function	Mom-Off-Mom
Termination Style	Screw Terminal
Type	Standard
Voltage Rating - AC	120 V
Voltage Rating - DC	24 V

A22NS Series

Part	Panel Cutout Dimensions [diameter]	Termination Style	Ingress Protection	Voltage Rating - DC	Features	Circuit	Depth Behind Flange	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Approval Agency	Switch Function	Illumination	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Type	Number of Positions
Omron Electronics Inc-EMC Div A22NS-2BL-NBA-P100-NN	22.3 mm	Spring Terminal	IP66	24 V	Bezel - Round Black Knob	SPST-NO	39.5 mm	10 A	120 V	500000 Cycles	CCC CE cULus TUV	Off-Mom	Non-Illuminated	70 °C	-25 °C	500000 Cycles	Standard	2
Omron Electronics Inc-EMC Div A22NS-2BL-NBA-P101-NN	22.3 mm	Spring Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO	39.5 mm	10 A	120 V	500000 Cycles	CCC CE cULus TUV	Off-Mom	Non-Illuminated	70 °C	-25 °C	500000 Cycles	Standard	2
Omron Electronics Inc-EMC Div A22NS-3MB-NBA-G102-NN	22.3 mm	Screw Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO/NC	45.3 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Mom-Off-Mom	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard
Omron Electronics Inc-EMC Div A22NS-3BM-NBA-P101-NN	22.3 mm	Spring Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO	39.5 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Off-Off-On On-Off-Off	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard
Omron Electronics Inc-EMC Div A22NS-3BM-NGA-G101-NN	22.3 mm	Screw Terminal	IP66	24 V	Bezel - Round Green Knob	DPST-NO	45.3 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Off-Off-On On-Off-Off	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard
Omron Electronics Inc-EMC Div A22NS-3MB-NBA-G101-NN	22.3 mm	Screw Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO	45.3 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Mom-Off-Mom	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard
Omron Electronics Inc-EMC Div A22NS-3MM-NBA-P101-NN	22.3 mm	Spring Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO	39.5 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Off-Off-On On-Off-Off	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard
Omron Electronics Inc-EMC Div A22NS-3BM-NGA-P101-NN	22.3 mm	Spring Terminal	IP66	24 V	Bezel - Round Green Knob	DPST-NO	39.5 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Off-Off-On On-Off-Off	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard
Omron Electronics Inc-EMC Div A22NS-2BL-NBA-P102-NN	22.3 mm	Spring Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO/NC	39.5 mm	10 A	120 V	500000 Cycles	CCC CE cULus TUV	Off-Mom On-Mom	Non-Illuminated	70 °C	-25 °C	500000 Cycles	Standard	2
Omron Electronics Inc-EMC Div A22NS-3BB-NBA-G101-NN	22.3 mm	Screw Terminal	IP66	24 V	Bezel - Round Black Knob	DPST-NO	45.3 mm	10 A	120 V	300000 Cycles	CCC CE cULus TUV	Mom-Off-Mom	Non-Illuminated	70 °C	-25 °C	300000 Cycles	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.58
		5	$ 21.97
		10	$ 20.59
		25	$ 18.87
		50	$ 17.67
		100	$ 16.58
		250	$ 15.20
		500	$ 14.94

Description

General part information

A22NS Series

Selector Switch 3 Position DPST-NO 10A (AC/DC) 120 V Panel Mount

Documents

Technical documentation and resources
