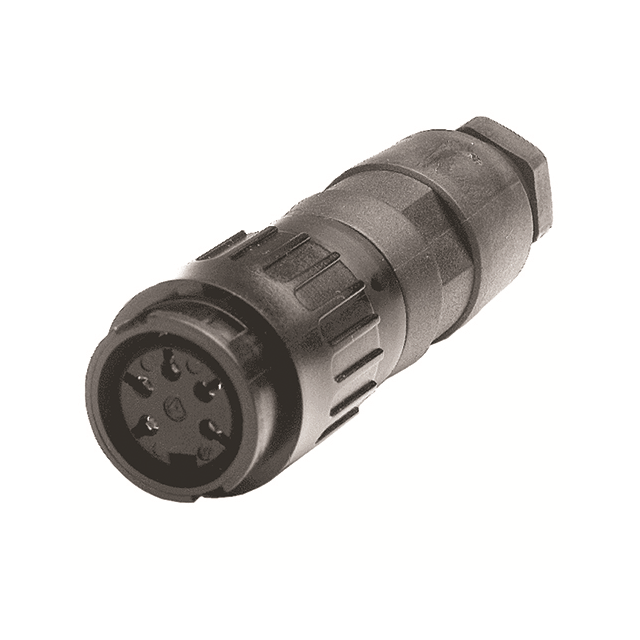

T 3278 504

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

FEMALE CABLE CONNECTOR WITH INTE

Technical Specifications

Parameters and characteristics for this part

Specification	T 3278 504

Applications	Marine, Industrial, Medical, Instrumentation, Testing Equipment & Measurement
Cable Opening [diameter]	6 mm, 4 mm
Cable Opening [diameter]	0.236 in, 0.157 in
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Current Rating (Amps)	10 A
Fastening Type	Bayonet Lock
Features	Cable Clamp, Backshell
Ingress Protection	IP40
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M16-3
Shielding	Unshielded
Voltage Rating	250 VDC

Part	Contact Finish - Mating	Color	Shell Size - Insert	Current Rating (Amps)	Shell Material	Material Flammability Rating	Shielding	Primary Material	Insert Material	Cable Opening [diameter]	Cable Opening [diameter]	Fastening Type	Applications	Mounting Type	Features	Shell Finish	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Ingress Protection	Connector Type
Amphenol Sine Systems Corp T 3278 504	Silver	Black	M16-3	10 A	Zinc Die Cast	UL94 V-0	Unshielded	Metal	Thermoplastic	4 mm 6 mm	0.157 in 0.236 in	Bayonet Lock	Industrial Instrumentation Marine Medical Testing Equipment & Measurement	Free Hanging (In-Line)	Backshell Cable Clamp	Nickel	Keyed	100 °C	-40 °C	250 VDC	IP40	Female Sockets Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 10.92

General part information

3 Position Circular Connector Plug, Female Sockets Solder Cup
