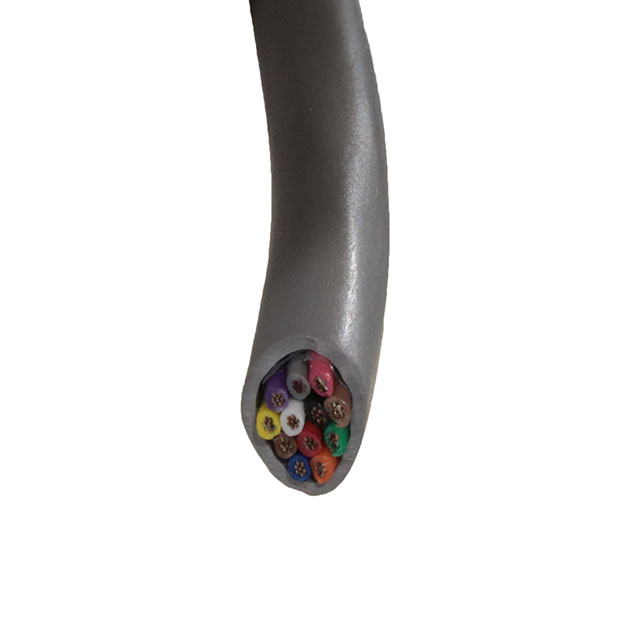

M33312 SL002

Active

ALPHA WIRE

CABLE 12COND 22AWG SLATE

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 12COND 22AWG SLATE

Technical Specifications

Parameters and characteristics for this part

Specification	M33312 SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	6.99 mm
Jacket (Insulation) Diameter [diameter]	0.275 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2576
Voltage	300 V
Wire Gauge	22 AWG

Part	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Strand [custom]	Conductor Strand [custom]	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge	Conductor Insulation	Jacket Color	Voltage	Number of Conductors	Length [x]	Length [x]	Cable Type	Jacket (Insulation) Material
ALPHA WIRE M33312 SL002	Copper Tinned	6.99 mm	0.275 in	28	7	UL Style 2576	-20 C	80 C	22 AWG	Poly-Vinyl Chloride (PVC)	Slate	300 V	12	500 '	152.4 m	Multi-Conductor	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 1.40

General part information

12 Conductor Multi-Conductor Cable Slate 22 AWG 500.0' (152.4m)
