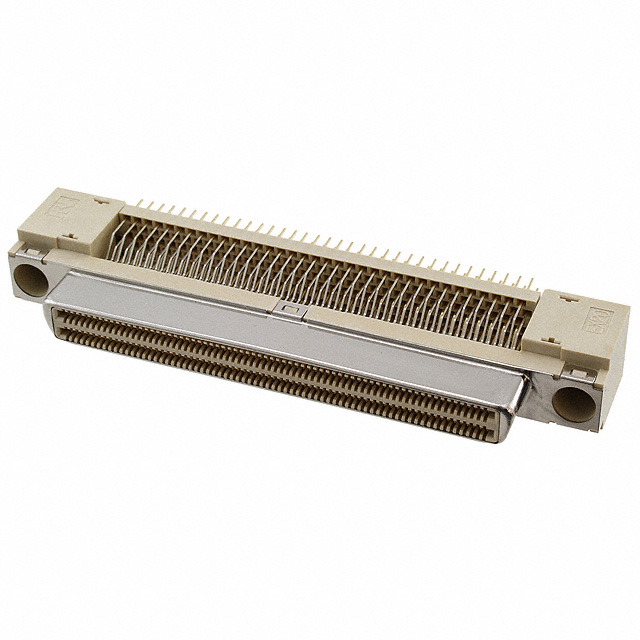

EX20E-280S
ActiveHirose Electric USA, Inc.
CONN RCPT 280POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EX20E-280S
ActiveHirose Electric USA, Inc.
CONN RCPT 280POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EX20E-280S |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Height Above Board | 0.827 in |
| Height Above Board | 21 mm |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 280 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 172.65 | |
| 10 | $ 134.92 | |||
| 25 | $ 123.00 | |||
| 40 | $ 117.47 | |||
| 80 | $ 109.97 | |||
Description
General part information
EX20E Series
280 Position Connector Receptacle, Outer Shroud Contacts Through Hole, Right Angle
