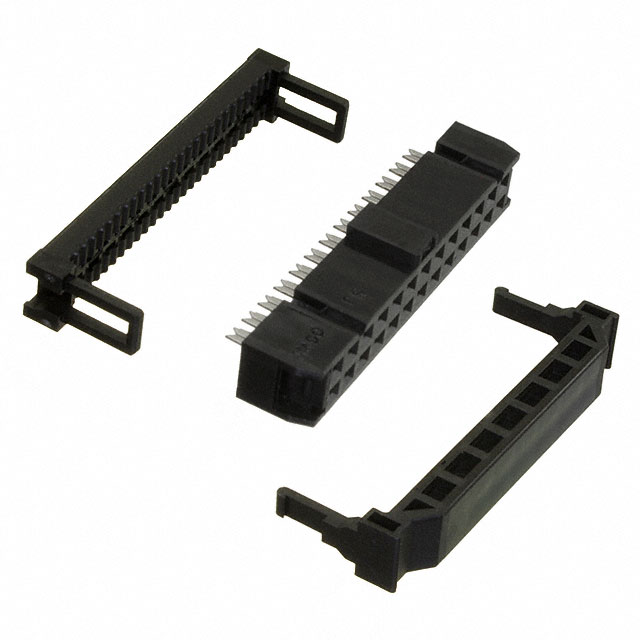

HIF3MAW-26D-2.54R

Obsolete

Hirose Electric USA, Inc.

CONN SOCKET 26POS IDC 28AWG GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF3MAW-26D-2.54R

Obsolete

Hirose Electric USA, Inc.

CONN SOCKET 26POS IDC 28AWG GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3MAW-26D-2.54R

Cable Termination	IDC
Color	Black
Connector Type	Socket
Contact Finish	Gold
Contact Finish Thickness	5.9 µin
Contact Finish Thickness	0.15 µm
Contact Type	Female Socket
Fastening Type	Latch Holder
Features	Feed Through, Polarizing Key, Strain Relief
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Gauge	28 AWG
Wire Type	Ribbon Cable

HIF3MAW Series

Rectangular MIL Spec Connectors

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Mating	Insulation Color	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Finish - Post	Termination	Number of Rows	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Style	Fastening Type	Contact Shape	Contact Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Material	Insulation Height	Insulation Height	Features	Number of Positions Loaded	Contact Material	Number of Positions	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Wire Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish	Wire Gauge	Color	Row Spacing [x]	Row Spacing	Overall Contact Length	Overall Contact Length	Number of Positions
Hirose Electric USA, Inc. HIF3MAW-34PA-2.54DSA(63)	85 °C	-55 °C	Header	6 mm	0.236 in	Gold	Black	Through Hole	0.13 in	3.3 mm	Tin	Solder	2	Shrouded - 4 Wall	0.15 µm	5.9 µin	Board to Cable/Wire	Latch Lock/Eject Hooks	Square	Male Pin	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.701 "	17.8 mm	Keying Slot	All	Brass	34	UL94 V-0	2 çm	78.7 çin	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MAW-14D-2.54R(63)			Socket					Free Hanging (In-Line)					2					Latch Holder		Female Socket						Feed Through Polarizing Key Strain Relief			14						Ribbon Cable	5.9 µin	0.15 µm	2.54 mm	0.1 in	IDC	Gold	28 AWG	Black	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MAW-20PA-2.54DSA	85 °C	-55 °C	Header	6 mm	0.236 in	Gold	Black	Through Hole	0.13 in	3.3 mm	Tin	Solder	2	Shrouded - 4 Wall	0.15 µm	5.9 µin	Board to Cable/Wire	Latch Lock/Eject Hooks	Square	Male Pin	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.701 "	17.8 mm	Keying Slot	All	Brass	20	UL94 V-0	2 çm	78.7 çin	0.1 in	2.54 mm												16.7 mm	0.657 in
Hirose Electric USA, Inc. HIF3MAW-30PA-2.54DS(63)	85 °C	-55 °C	Header	6 mm	0.236 in	Gold	Black	Through Hole Right Angle	0.118 in	3 mm	Tin	Solder	2	Shrouded - 4 Wall	0.15 µm	5.9 µin	Board to Cable/Wire	Latch Lock/Eject Hooks	Square	Male Pin	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.335 "	8.51 mm		All	Brass	30	UL94 V-0	2 çm	78.7 çin	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MAW-60D-2.54R(63)			Socket					Free Hanging (In-Line)					2					Latch Holder		Female Socket						Feed Through Polarizing Key Strain Relief			60						Ribbon Cable	5.9 µin	0.15 µm	2.54 mm	0.1 in	IDC	Gold	28 AWG	Black	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MAW-50PA-2.54DSA	85 °C	-55 °C	Header	6 mm	0.236 in	Gold	Black	Through Hole	0.13 in	3.3 mm	Tin	Solder	2	Shrouded - 4 Wall	0.15 µm	5.9 µin	Board to Cable/Wire	Latch Lock/Eject Hooks	Square	Male Pin	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.701 "	17.8 mm	Keying Slot	All	Brass	50	UL94 V-0	2 çm	78.7 çin	0.1 in	2.54 mm												16.7 mm	0.657 in
Hirose Electric USA, Inc. HIF3MAW-16D-2.54R(63)			Socket					Free Hanging (In-Line)					2					Latch Holder		Female Socket						Feed Through Polarizing Key Strain Relief									Ribbon Cable	5.9 µin	0.15 µm	2.54 mm	0.1 in	IDC	Gold	28 AWG	Black	0.1 in	2.54 mm			16
Hirose Electric USA, Inc. HIF3MAW-26D-2.54R			Socket					Free Hanging (In-Line)					2					Latch Holder		Female Socket						Feed Through Polarizing Key Strain Relief			26						Ribbon Cable	5.9 µin	0.15 µm	2.54 mm	0.1 in	IDC	Gold	28 AWG	Black	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MAW-64D-2.54R			Socket					Free Hanging (In-Line)					2					Latch Holder		Female Socket						Feed Through Polarizing Key Strain Relief			64						Ribbon Cable	5.9 µin	0.15 µm	2.54 mm	0.1 in	IDC	Gold	28 AWG	Black	0.1 in	2.54 mm
Hirose Electric USA, Inc. HIF3MAW-26PA-2.54DSA(63)	85 °C	-55 °C	Header	6 mm	0.236 in	Gold	Black	Through Hole	0.13 in	3.3 mm	Tin	Solder	2	Shrouded - 4 Wall	0.15 µm	5.9 µin	Board to Cable/Wire	Latch Lock/Eject Hooks	Square	Male Pin	2.54 mm	0.1 in	Polybutylene Terephthalate (PBT)	0.701 "	17.8 mm	Keying Slot	All	Brass	26	UL94 V-0	2 çm	78.7 çin	0.1 in	2.54 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HIF3MAW Series

Rectangular MIL Spec Connectors

Documents

Technical documentation and resources
