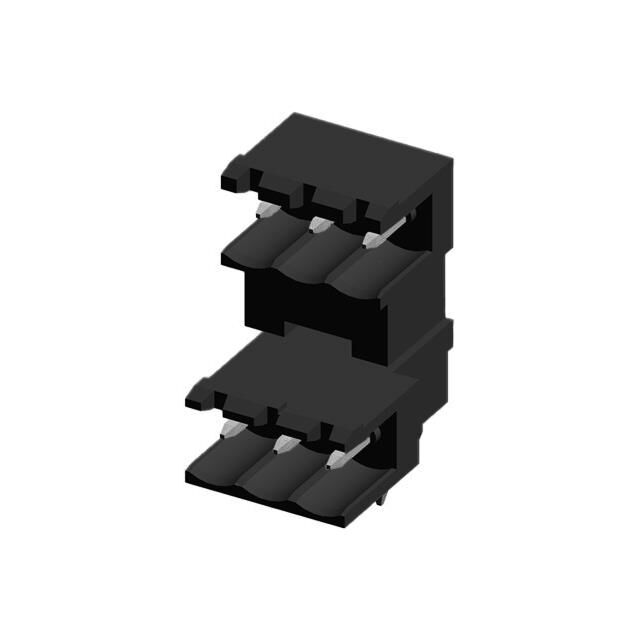

0395283048

Active

Molex

TERM BLOCK HDR 48POS 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsProduct Specification 39500-001 Prod Spec +1

0395283048

Active

Molex

TERM BLOCK HDR 48POS 5MM

Deep-Dive with AI

DocumentsProduct Specification 39500-001 Prod Spec +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395283048

Color	Black
Contact Material	Brass
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Header Orientation	Vertical
Insulation Height	0.87 in
Insulation Height	22.1 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	48
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V

039528 Series

Part	Insulation Height	Insulation Height	Voltage - UL	Contact Tail Length	Contact Tail Length	Header Orientation	Type	Material Flammability Rating	Contact Mating Finish	Color	Number of Levels	Contact Material	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Termination Style	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]	Features
Molex 0395285010	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	10	Through Hole	5 mm	0.197 in	Solder	5	-40 °C	105 ░C	Interlocking (Side)
Molex 0395281014	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Black	2	Brass	14	Through Hole	5 mm	0.197 in	Solder	7	-40 °C	105 ░C
Molex 0395288004	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Green	2	Brass	4	Through Hole	5 mm	0.197 in	Solder	2	-40 °C	105 ░C
Molex 0395287004	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	4	Through Hole	5 mm	0.197 in	Solder	2	-40 °C	105 ░C	Interlocking (Side)
Molex 0395282030	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Black	2	Brass	30	Through Hole	5 mm	0.197 in	Solder	15	-40 °C	105 ░C	Interlocking (Side)
Molex 0395288028	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Green	2	Brass	28	Through Hole	5 mm	0.197 in	Solder	14	-40 °C	105 ░C
Molex 0395285022	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	22 positions	Through Hole	5 mm	0.197 in	Solder	11	-40 °C	105 ░C	Interlocking (Side)
Molex 0395283048	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Black	2	Brass	48	Through Hole	5 mm	0.197 in	Solder		-40 °C	105 ░C
Molex 0395281026	0.93 in	23.62 mm	300 V	3.5 mm	0.138 in	90° Right Angle	Header Male Pins Shrouded (4 Side)	UL94 V-0	Tin	Black	2	Brass	26	Through Hole	5 mm	0.197 in	Solder	13	-40 °C	105 ░C
Molex 0395287030	0.87 in	22.1 mm	300 V	3.5 mm	0.138 in	Vertical	Header Male Pins Shrouded (2 Side)	UL94 V-0	Tin	Green	2	Brass	30	Through Hole	5 mm	0.197 in	Solder	15	-40 °C	105 ░C	Interlocking (Side)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	960	$ 6.00

Description

General part information

039528 Series

48 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole

Documents

Technical documentation and resources

Product Specification

39500-001 Prod Spec

Datasheet
