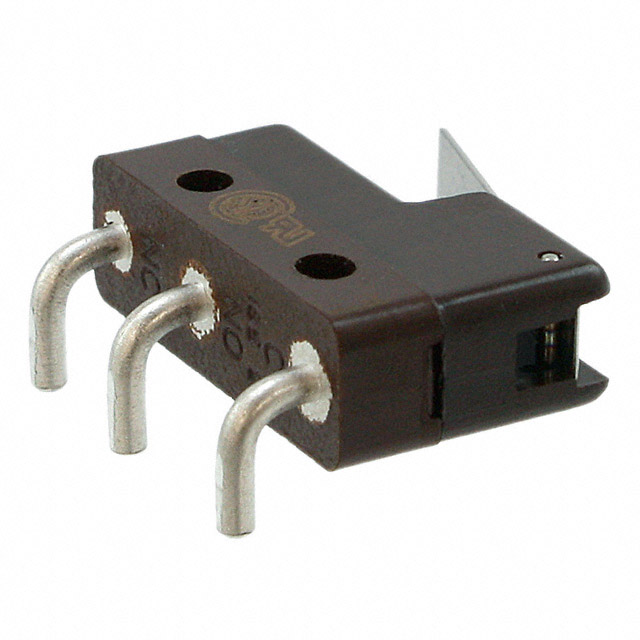

341SM169-H252
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 250V
Deep-Dive with AI
Search across all available documentation for this part.
341SM169-H252
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 341SM169-H252 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 5 A, 11 A |
| Differential Travel | 0.018 in |
| Differential Travel | 0.45 mm |
| Mounting Type | Through Hole, Right Angle |
| Operating Position [x] | 0.34 in |
| Operating Position [x] | 8.6 mm |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Overtravel | 0.018 in |
| Overtravel | 0.45 mm |
| Pretravel | 2 mm |
| Pretravel | 0.08 in |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 24.60 | |
| 10 | $ 20.39 | |||
| 25 | $ 18.92 | |||
| 50 | $ 17.88 | |||
| 100 | $ 16.89 | |||
| 250 | $ 15.67 | |||
| 500 | $ 15.31 | |||
Description
General part information
341SM169 Series
Switch SPDT Through Hole, Right Angle
