M3KKK-3418J

Active

3M (TC)

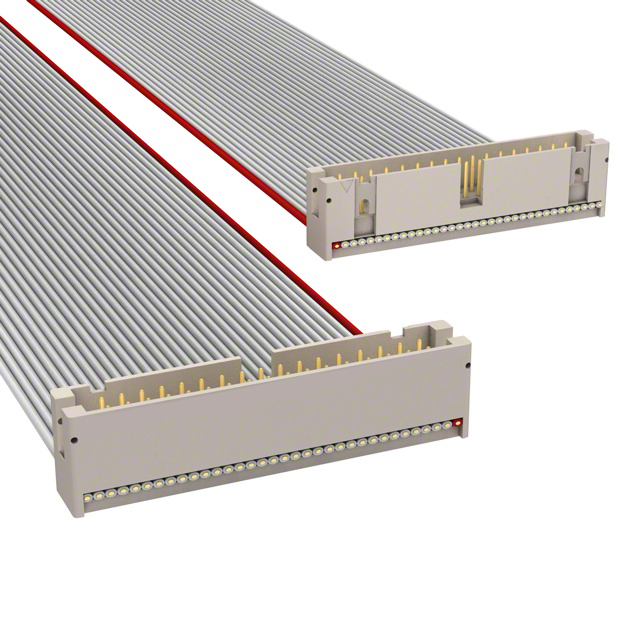

IDC CABLE - MPK34K/MC34G/MPK34K

Deep-Dive with AI

Search across all available documentation for this part.

Documents3365 Series Datasheet Datasheet +1

M3KKK-3418J

Active

3M (TC)

IDC CABLE - MPK34K/MC34G/MPK34K

Deep-Dive with AI

Documents3365 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M3KKK-3418J

Cable Termination	IDC
Connector Type	Plug to Plug
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	457.2 mm
Length [x]	1.5 ft
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M3KKK Series

Part	Contact Finish	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Features	Color	Shielding	Number of Rows	Connector Type	Number of Positions	Pitch - Cable	Pitch - Cable	Cable Termination	Length [x]	Length [x]	Number of Positions	Length
3M (TC) M3KKK-4006R	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	Multiple Ribbon	Unshielded	2	Plug to Plug	40	0.05 "	1.27 mm	IDC
3M (TC) M3KKK-3618J	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug	36	0.05 "	1.27 mm	IDC	457.2 mm	1.5 ft
3M (TC) M3KKK-1006J	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug	10	0.05 "	1.27 mm	IDC
3M (TC) M3KKK-2018J	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug	20	0.05 "	1.27 mm	IDC	457.2 mm	1.5 ft
3M (TC) M3KKK-3418J	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug	34	0.05 "	1.27 mm	IDC	457.2 mm	1.5 ft
3M (TC) M3KKK-1618J	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug		0.05 "	1.27 mm	IDC	457.2 mm	1.5 ft	16
3M (TC) M3KKK-1636J	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug		0.05 "	1.27 mm	IDC	914.4 mm	3 ft	16
3M (TC) M3KKK-6418R	Gold				0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	Multiple Ribbon	Unshielded	2	Plug to Plug	64	0.05 "	1.27 mm	IDC	457.2 mm	1.5 ft
3M (TC) M3KKK-6006J	Gold	152.4 mm	6 "	0.5 '	0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key		Unshielded	2	Plug to Plug	60	0.05 "	1.27 mm	IDC
3M (TC) M3KKK-6420K	Gold	508 mm			0.76 Ám	30 Áin	0.1 in	2.54 mm	Polarizing Key	Multiple Twisted Pair (Flat)	Unshielded	2	Plug to Plug	64	0.05 "	1.27 mm	IDC				1.67 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.76
		10	$ 25.30
		25	$ 22.93
		50	$ 21.33
		100	$ 19.88
		250	$ 18.17
		500	$ 17.02

Description

General part information

M3KKK Series

34 Position Cable Assembly Rectangular Plug to Plug 1.50' (457.20mm)

Documents

Technical documentation and resources

3365 Series Datasheet

Datasheet

Ribbon Cable Assembly Length Guide

Datasheet
