ESDBPT-7/8

Active

Bertech

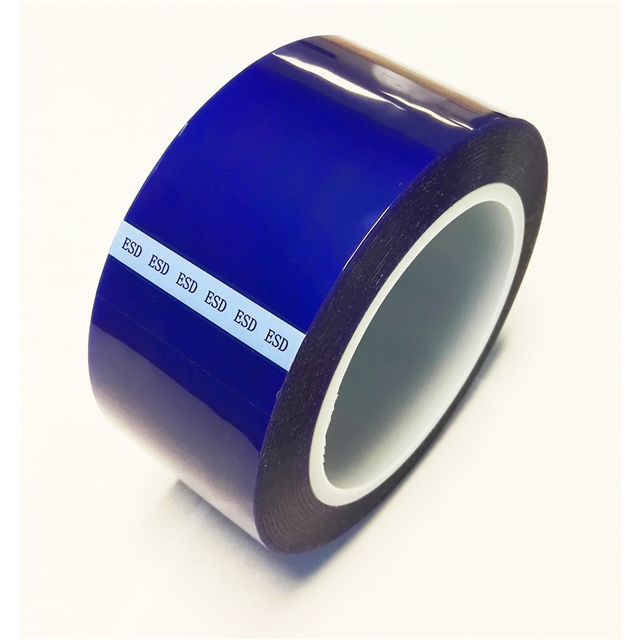

TAPE MASKING BLUE 7/8"X72YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ESDBPT-7/8

Active

Bertech

TAPE MASKING BLUE 7/8"X72YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ESDBPT-7/8

Adhesive	Silicone
Backing, Carrier	Polyester Film
Color	Blue
Length	66 m
Length	216 ft
Length	72 yd
Tape Type	Masking
Temperature Range [Max]	356 °F
Temperature Range [Min]	-40 °F
Thickness	2.5 mils
Thickness	0.064 mm
Thickness	0.0025 "
Thickness - Adhesive	1.5 mils
Thickness - Adhesive	0.0015 in
Thickness - Adhesive	0.038 mm
Thickness - Backing, Carrier	1 mils
Thickness - Backing, Carrier	0.025 mm
Thickness - Backing, Carrier	0.001 "
Usage	Masking, Packaging
Width	0.88 in
Width	0.875 in
Width	22.35 mm

ESDBPT Series

Part	Shelf Life	Color	Length	Length	Length	Usage	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Temperature Range [Max]	Temperature Range [Min]	Shelf Life Start	Adhesive	Width [x]	Width [x]	Tape Type	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Thickness	Thickness	Thickness	Backing, Carrier	Width [x]	Width	Width	Width	Width	Width [y]
Bertech ESDBPT-1	18 Months	Blue	66 m	216 ft	72 yd	Masking	1 mils	0.025 mm	0.001 "	356 °F	-40 °F	Date of Manufacture	Silicone	25.4 mm	1 in	Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film
Bertech ESDBPT-11/16		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone	17.48 mm	0.69 in	Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film	0.6875 in
Bertech ESDBPT-3	18 Months	Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F	Date of Manufacture	Silicone	76.2 mm	3 in	Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film
Bertech ESDBPT-1 5/8		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone			Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film		1.63 in 41.28 mm	1 5/8
Bertech ESDBPT-3/8		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone			Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film		0.38 in		0.375 in	9.65 mm
Bertech ESDBPT-7/8		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone			Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film		0.88 in		0.875 in	22.35 mm
Bertech ESDBPT-25MM		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone			Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film		0.98 "			25 mm
Bertech ESDBPT-4 1/2		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone			Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film		4.5 "			114.3 mm
Bertech ESDBPT-7		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone	177.8 mm	7 in	Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film
Bertech ESDBPT-150MM		Blue	66 m	216 ft	72 yd	Masking Packaging	1 mils	0.025 mm	0.001 "	356 °F	-40 °F		Silicone			Masking	1.5 mils	0.0015 in	0.038 mm	2.5 mils	0.064 mm	0.0025 "	Polyester Film					150 mm	5.91 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.32

Description

General part information

ESDBPT Series

Masking Tape Silicone Adhesive Blue 0.88" (22.35mm) 7/8" X 216' (66.0m) 72 yds
