HR10-10P-12S

Obsolete

Hirose Electric USA, Inc.

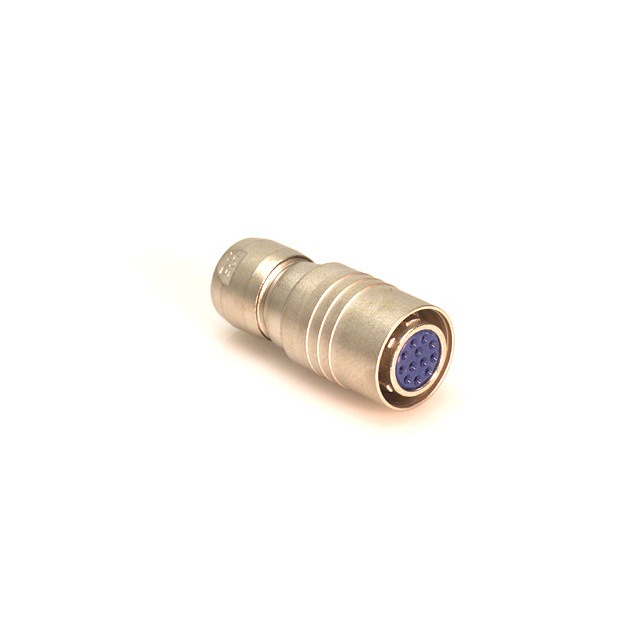

CONN PLUG FMALE 12P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HR10-10P-12S

Obsolete

Hirose Electric USA, Inc.

CONN PLUG FMALE 12P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HR10-10P-12S

Cable Opening [custom]	0.283 in
Cable Opening [custom]	7.2 mm
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Mounting Type	Free Hanging (In-Line)
Number of Positions	12
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Size - Insert	10
Shielding	Unshielded
Voltage Rating	100 VAC, 140 VDC

HR10 Series

Part	For Use With/Related Products	Tool Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Primary Material	Connector Type	Fastening Type	Contact Finish - Mating	Number of Positions	Current Rating (Amps)	Insert Material	Contact Material	Shell Size - Insert	Shell Finish	Orientation	Color	Shell Material	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Backshell Material, Plating	Features	Cable Opening [custom]	Cable Opening [custom]	Termination	Material Flammability Rating
Hirose Electric USA, Inc. HR10-7J-T03
Hirose Electric USA, Inc. HR10B-TP	Circular Coaxial Contacts	Extraction Tool
Hirose Electric USA, Inc. HR10-7R-6P(73)			Unshielded	-25 °C	85 °C	100 VAC 140 VDC	Metal	Male Pins Receptacle	Push-Pull	Gold	6	2 A	Nylon Polyamide (PA)	Brass	7	Nickel	Keyed	Silver	Zinc Alloy	Bulkhead - Rear Side Nut	0.203 Ám	8 Áin
Hirose Electric USA, Inc. HR10-7P-4P(73)			Unshielded	-25 °C	85 °C	150 VAC 200 V	Metal	Male Pins Plug	Push-Pull	Gold	4	2 A	Nylon Polyamide (PA)	Brass	7	Nickel	Keyed	Silver	Zinc Alloy		0.203 Ám	8 Áin	Free Hanging (In-Line)	Brass Nickel	Backshell Clamp	0.205 in	5.2 mm
Hirose Electric USA, Inc. HR10-7R-6PA(73)			Unshielded	-25 °C	85 °C	100 VAC 140 VDC	Metal	Male Pins Receptacle	Push-Pull	Gold	6	2 A	Nylon Polyamide (PA)	Brass	7	Nickel	Keyed	Silver	Zinc Alloy	Bulkhead - Rear Side Nut	0.203 Ám	8 Áin	Panel Mount Through Hole					Solder
Hirose Electric USA, Inc. HR10-10P-12S			Unshielded	-25 °C	85 °C	100 VAC 140 VDC	Metal	Female Sockets Plug	Push-Pull	Gold	12	2 A		Copper Alloy	10	Nickel	Keyed						Free Hanging (In-Line)			0.283 in	7.2 mm
Hirose Electric USA, Inc. HR10-7TR-6S(73)			Unshielded	-25 °C	85 °C	100 VAC 140 VDC	Metal	Receptacle Female Sockets		Gold	6	2 A	Nylon Polyamide (PA)	Beryllium Copper	7	Nickel	Keyed	Silver	Brass	Bulkhead - Rear Side Nut	0.203 Ám	8 Áin							UL94 V-0
Hirose Electric USA, Inc. HR10-10PA-12S(73)
Hirose Electric USA, Inc. HR10-10P-12P(73)			Unshielded	-25 °C	85 °C	100 VAC 140 VDC	Metal	Male Pins Plug	Push-Pull	Gold	12	2 A	Nylon Polyamide (PA)	Brass	10	Nickel	Keyed	Silver	Zinc Alloy		0.203 Ám	8 Áin	Free Hanging (In-Line)	Brass Nickel	Backshell Clamp	0.283 in	7.2 mm
Hirose Electric USA, Inc. HR10-7P-6S(73)			Unshielded	-25 °C	85 °C	100 VAC 140 VDC	Metal	Female Sockets Plug	Push-Pull	Gold	6	2 A	Nylon Polyamide (PA)	Beryllium Copper	7	Nickel	Keyed	Silver	Zinc Alloy		0.203 Ám	8 Áin	Free Hanging (In-Line)	Brass Nickel	Backshell Clamp	0.205 in	5.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

HR10 Series

12 Position Circular Connector Plug, Female Sockets Solder Cup
