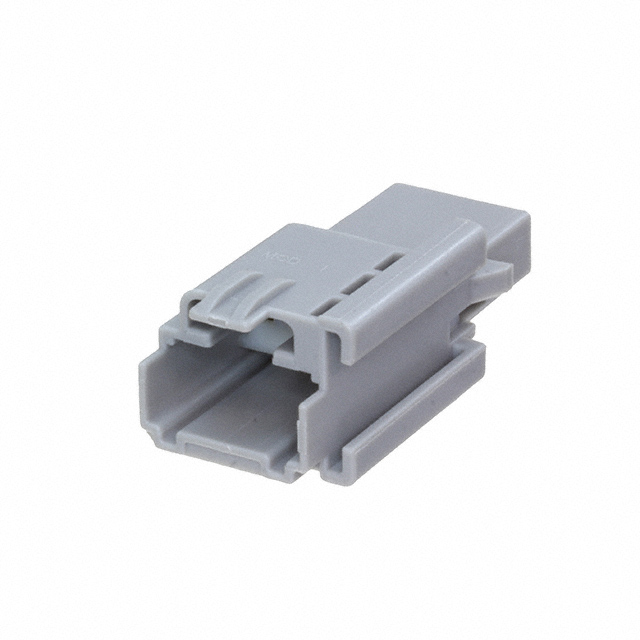

0310681071

Active

Molex

CONN HDR HSG 4POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN HDR HSG 4POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Contact Type	Fastening Type	Note	Number of Rows	Contact Termination	Connector Type	Pitch [x]	Pitch [x]	Features	Color	Mounting Type
Molex 0310681070	105 ░C	-55 °C	4	Male Pin	Latch Holder	Contacts Not Included	1	Crimp	Header	2.54 mm	0.1 in	Terminal Position Lock (TPA)	Black	Bracket Mount
Molex 0310681071	105 ░C	-55 °C	4	Male Pin	Latch Holder	Contacts Not Included	1	Crimp	Header	2.54 mm	0.1 in	Terminal Position Lock (TPA)	Gray	Bracket Mount
Molex 0310681072	105 ░C	-55 °C	4	Male Pin	Latch Holder	Contacts Not Included	1	Crimp	Header	2.54 mm	0.1 in	Terminal Position Lock (TPA)	Brown	Bracket Mount
Molex 0310681041			4	Male Pin	Latch Holder	Contacts Not Included	1	Crimp	Header	2.54 mm	0.1 in	Terminal Position Lock (TPA)	Gray	Free Hanging (In-Line)
Molex 0310681011	100 °C	-40 °C	4	Female Socket	Latch Lock	Contacts Not Included	1	Crimp	Receptacle	2.54 mm	0.1 in	Terminal Position Lock (TPA)	Gray	Free Hanging (In-Line)
Molex 0310681040	100 °C	-40 °C	4	Male Pin	Latch Holder	Contacts Not Included	1	Crimp	Header	2.54 mm	0.1 in	Terminal Position Lock (TPA)	Black	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Rectangular Connectors - Housings Header Gray 0.100" (2.54mm)

Technical documentation and resources

No documents available
