THL3503

Obsolete

THine Solutions, Inc.

IC LED DRIVER PS 40MA 40QFN

Search across all available documentation for this part.

Obsolete

THine Solutions, Inc.

IC LED DRIVER PS 40MA 40QFN

Technical Specifications

Parameters and characteristics for this part

Specification	THL3503

Applications	Backlight, Signage
Current - Output / Channel [custom]	40 mA
Frequency	10 MHz
Internal Switch(s)	True
Mounting Type	Surface Mount
Number of Outputs	16
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C

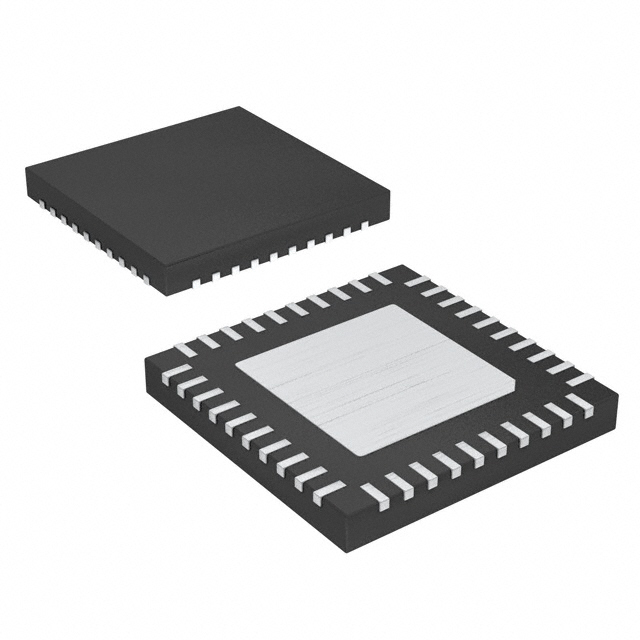

Package / Case	40-VFQFN Exposed Pad
Supplier Device Package	40-QFN (6x6)
Type	Power Switch
Voltage - Output	35 V
Voltage - Supply (Max)	5.5 V
Voltage - Supply (Min) [Min]	3 V

Part	Voltage - Supply (Min) [Min]	Voltage - Supply (Max)	Frequency	Applications	Mounting Type	Type	Voltage - Output	Number of Outputs	Internal Switch(s)	Current - Output / Channel [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package
THine Solutions, Inc. THL3503	3 V	5.5 V	10 MHz	Backlight Signage	Surface Mount	Power Switch	35 V	16		40 mA	40-VFQFN Exposed Pad	85 °C	-40 °C	40-QFN (6x6)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Driver IC 16 Output Power Switch Dimming 40mA 40-QFN (6x6)

Technical documentation and resources

No documents available
