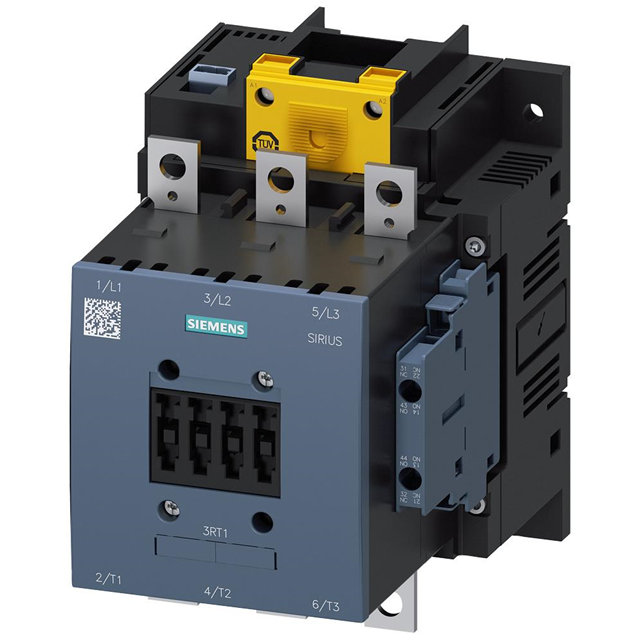

3RT14566SP36

Active

Siemens

CONTACT. AC1: 275A 2NO+2NC F-PLC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3RT14566SP36

Coil Power	320 W
Coil Voltage [Max]	277 VAC
Coil Voltage [Min]	200 VAC/DC
Contact Form	3PST-NO (3 Form A)
Contact Rating (Current)	275 A
Features	Auxiliary Contacts
Mounting Type	Chassis Mount, DIN Rail
Operate Time	75 ms
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Release Time	130 ms
Switching Voltage	1000 VAC
Termination Style	Screw Terminal

3RT1456 Series

Part	Contact Form	Coil Power	Release Time	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Rating (Current)	Operate Time	Switching Voltage	Termination Style	Coil Voltage [Min]	Coil Voltage [Max]	Must Operate Voltage	Coil Voltage	Coil Voltage
Siemens 3RT14566AP380PA5	3PST-NO (3 Form A)	360 W	60 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	95 ms	1000 VAC	Screw Terminal	220 VAC	240 VAC
Siemens 3RT14566SP36	3PST-NO (3 Form A)	320 W	130 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	75 ms	1000 VAC	Screw Terminal	200 VAC/DC	277 VAC
Siemens 3RT14566SF36	3PST-NO (3 Form A)	320 W	130 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	75 ms	1000 VAC	Screw Terminal	96 VAC/DC	127 VAC/DC
Siemens 3RT14562AR380PB0
Siemens 3RT14566AB380PA5	3PST-NO (3 Form A)	360 W	60 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	95 ms	1000 VAC	Screw Terminal	23 VAC/DC	26 VAC/DC
Siemens 3RT14566AP36	3PST-NO (3 Form A)	360 W	60 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	95 ms	1000 VAC	Screw Terminal	220 VAC	240 VAC
Siemens 3RT14566SP363PA0	3PST-NO (3 Form A)	320 W	130 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	75 ms	1000 VAC	Screw Terminal	200 VAC/DC	277 VAC
Siemens 3RT14566NB36	3PST-NO (3 Form A)	320 W	90 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	55 °C	275 A	75 ms	1000 VAC	Screw Terminal	21 VAC/DC	27.3 VAC/DC
Siemens 3RT14566AB36	3PST-NO (3 Form A)	360 W	60 ms	Auxiliary Contacts	Chassis Mount			275 A	95 ms	690 VAC	Screw Terminal			20.8 VAC/DC	26 VDC	26 VAC
Siemens 3RT14566SF363PA0	3PST-NO (3 Form A)	320 W	130 ms	Auxiliary Contacts	Chassis Mount DIN Rail	-25 °C	60 °C	275 A	75 ms	1000 VAC	Screw Terminal	96 VAC/DC	127 VAC/DC
