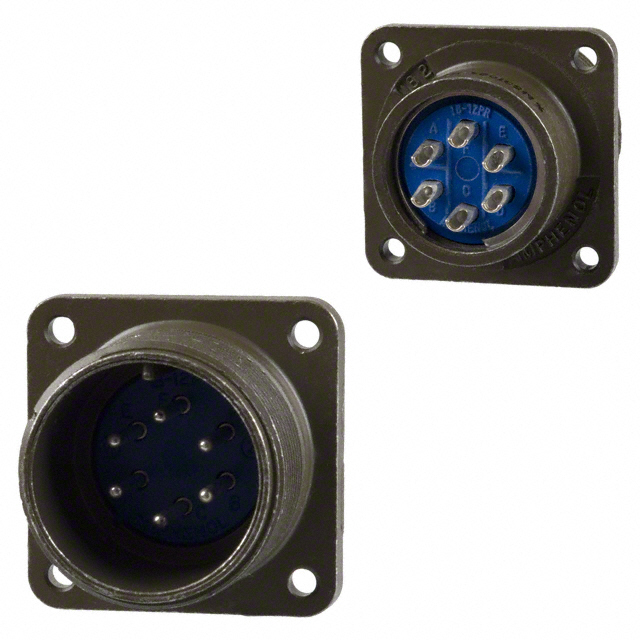

97-3102A-18-12P

Active

Amphenol Industrial Operations

CONN RCPT MALE 6P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

97-3102A-18-12P

Active

Amphenol Industrial Operations

CONN RCPT MALE 6P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	97-3102A-18-12P

Applications	Industrial, Automotive
Color	Olive Drab
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Insert Material	Diallyl Phthalate (DAP)
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert	18-12
Shielding	Unshielded

97-3102A18 Series

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Color	Shell Material	Mounting Feature	Shell Finish	Shielding	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Insert Material	Connector Type	Primary Material	Contact Material	Contact Finish - Mating	Applications	Shell Size - Insert
Amphenol Industrial Operations 97-3102A-18-1S(946)	10	-55 °C	125 °C	Black	Aluminum Alloy	Flange	Black Zinc Alloy	Unshielded	N	1	18	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Metal	Copper Alloy	Silver	Automotive Industrial
Amphenol Industrial Operations 97-3102A-18-12P	6	-55 °C	125 °C	Olive Drab	Aluminum Alloy	Flange	Olive Drab Chromate over Cadmium	Unshielded	N			Diallyl Phthalate (DAP)	Male Pins Receptacle	Metal	Copper Alloy	Silver	Automotive Industrial	18-12
Amphenol Industrial Operations 97-3102A-18-12P(946)	6	-55 °C	125 °C	Black	Aluminum Alloy	Flange	Black Zinc Alloy	Unshielded	N			Diallyl Phthalate (DAP)	Male Pins Receptacle	Metal	Copper Alloy	Silver	Automotive Industrial	18-12
Amphenol Industrial Operations 97-3102A-18-1P	10	-55 °C	125 °C	Olive Drab	Aluminum Alloy	Flange	Olive Drab Chromate over Cadmium	Unshielded	N	1	18	Diallyl Phthalate (DAP)	Male Pins Receptacle	Metal	Copper Alloy	Silver	Automotive Industrial
Amphenol Industrial Operations 97-3102A-18-4P(946)	4	-55 °C	125 °C	Black	Aluminum Alloy	Flange	Black Zinc Alloy	Unshielded	N			Diallyl Phthalate (DAP)	Male Pins Receptacle	Metal	Copper Alloy	Silver	Automotive Industrial	18-4
Amphenol Industrial Operations 97-3102A-18-11S		-55 °C	125 °C	Olive Drab	Aluminum Alloy	Flange	Olive Drab Chromate over Cadmium	Unshielded	N			Diallyl Phthalate (DAP)	Receptacle Female Sockets	Metal	Copper Alloy	Silver	Automotive Industrial	18-11
Amphenol Industrial Operations 97-3102A-18-19S(946)	10	-55 °C	125 °C	Black	Aluminum Alloy	Flange	Black Zinc Alloy	Unshielded	N	19	18	Diallyl Phthalate (DAP)	Receptacle Female Sockets	Metal	Copper Alloy	Silver	Automotive Industrial
Amphenol Industrial Operations 97-3102A-18-10P	4	-55 °C	125 °C	Olive Drab	Aluminum Alloy	Flange	Olive Drab Chromate over Cadmium	Unshielded	N			Diallyl Phthalate (DAP)	Male Pins Receptacle	Metal	Copper Alloy	Silver	Automotive Industrial	18-10
Amphenol Industrial Operations 97-3102A-18-22P		-55 °C	125 °C	Olive Drab	Aluminum Alloy	Flange	Olive Drab Chromate over Cadmium	Unshielded	N	22	18	Diallyl Phthalate (DAP)	Male Pins Receptacle	Metal	Copper Alloy	Silver	Automotive Industrial
Amphenol Industrial Operations 97-3102A-18-10S(946)	4	-55 °C	125 °C	Black	Aluminum Alloy	Flange	Black Zinc Alloy	Unshielded	N			Diallyl Phthalate (DAP)	Receptacle Female Sockets	Metal	Copper Alloy	Silver	Automotive Industrial	18-10

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.33
		10	$ 29.19
		25	$ 27.93
		50	$ 27.03
		100	$ 26.13
		250	$ 24.69

Description

General part information

97-3102A18 Series

6 Position Circular Connector Receptacle, Male Pins Solder Cup
