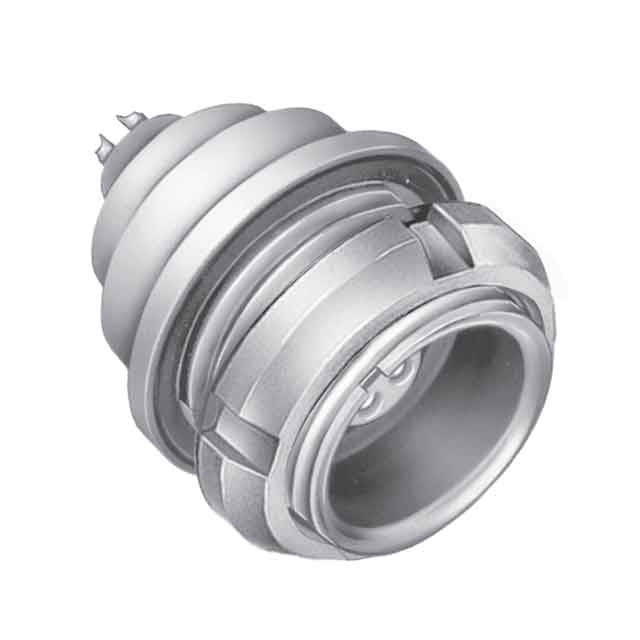

EEG.1K.314.CLN

Active

LEMO

CONN RCPT FMALE 14POS GOLD SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EEG.1K.314.CLN

Active

LEMO

CONN RCPT FMALE 14POS GOLD SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EEG.1K.314.CLN

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	2 A
Fastening Type	Push-Pull
Ingress Protection	IP66/IP68
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	14
Operating Temperature [Max]	200 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	314
Shielding	Shielded
Termination	Solder

EEG.1K Series

Part	Current Rating (Amps)	Fastening Type	Orientation	Contact Finish - Mating	Shielding	Material Flammability Rating	Ingress Protection	Shell Material	Mounting Type	Insert Material	Termination	Primary Material	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Connector Type	Color	Shell Size - Insert	Number of Positions	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions
LEMO EEG.1K.308.CLV	5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	308	8	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.304.CLN	10 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	304	4	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.314.CLN	2 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	314	14	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.304.CYM	10 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)	Crimp	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	304	4	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.316.CLN	1.5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	316		Bulkhead - Front Side Nut	59 Áin	1.5 Ám	16
LEMO EEG.1K.305.CLN	9 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	305		Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.308.KLL	5 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal		-55 °C	200 °C	Bronze	Receptacle Female Sockets	Black	308	8	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.307.CLL	7 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	307	7	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.304.CLL	10 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass		Polyetheretherketone (PEEK)		Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	304	4	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
LEMO EEG.1K.314.CLV	2 A	Push-Pull	G	Gold	Shielded	UL94 V-0	IP66/IP68	Brass	Panel Mount Right Angle Through Hole	Polyetheretherketone (PEEK)	Solder	Metal	Chrome	-55 °C	200 °C	Bronze	Receptacle Female Sockets	Silver	314	14	Bulkhead - Front Side Nut	59 Áin	1.5 Ám
