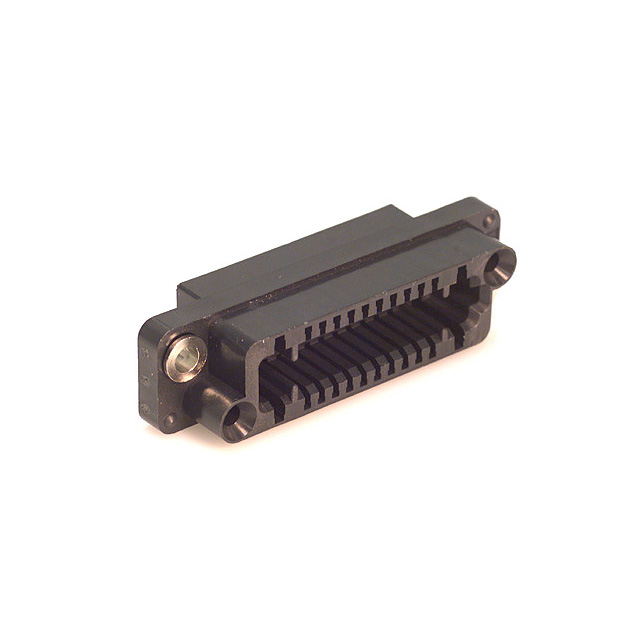

QR/P1-24S-C(51)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG RACK & PNL 24P BLK

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT HSG RACK & PNL 24P BLK

Technical Specifications

Parameters and characteristics for this part

Crimpers / Crimping Tools QR/P1 SER AUTO CRMP APPLICATOR TOOL

Part	Note	Number of Positions	Color	Connector Style	Features	Connector Type	Number of Rows	Connector Usage	Pitch [x]	Pitch [x]	Contact Finish	Contact Termination	Pin or Socket	Type	Wire Gauge [Min]	Wire Gauge [Max]	Current Rating (Amps)	Number of Positions
Hirose Electric USA, Inc. QR/P1-8S-C(21)	Contacts Not Included	8	Black	Rack and Panel	Mating Guide	Housing for Female Sockets	2	Receptacle
Hirose Electric USA, Inc. QR/P1-32P-C(21)			Black	Rack and Panel	Guide Pin	Housing for Male Pins	2	Plug
Hirose Electric USA, Inc. QR/P1-24S-C(51)	Contacts Not Included	24	Black	Rack and Panel	Mating Guide	Housing for Female Sockets	2	Receptacle	0.11 in	2.8 mm
Hirose Electric USA, Inc. QR/P1-PC2B-121(12)											Gold	Crimp	Pin	Signal	20 AWG	24 AWG
Hirose Electric USA, Inc. QR/P1-PC2A-211(15)											Gold	Crimp	Pin	Signal	24 AWG	28 AWG	3 A
Hirose Electric USA, Inc. QR/P1-PC1B-221(12)											Gold	Crimp	Pin	Power			13 A
Hirose Electric USA, Inc. QR/P1-8P-C(51)	Contacts Not Included	8	Black	Rack and Panel	Guide Pin	Housing for Male Pins	2	Plug	0.11 in	2.8 mm
Hirose Electric USA, Inc. QR/P1-PC1A-211(12)											Gold	Crimp	Pin	Power	17.5 AWG	24 AWG
Hirose Electric USA, Inc. QR/P1-24P-C(21)	Contacts Not Included	24	Black	Rack and Panel	Guide Pin	Housing for Male Pins	2	Plug
Hirose Electric USA, Inc. QR/P1-16S-C(21)	Contacts Not Included		Black	Rack and Panel	Mating Guide	Housing for Female Sockets	2	Receptacle										16

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Crimpers / Crimping Tools QR/P1 SER AUTO CRMP APPLICATOR TOOL

Technical documentation and resources
