FPG.1B.306.CLAD76

Active

LEMO

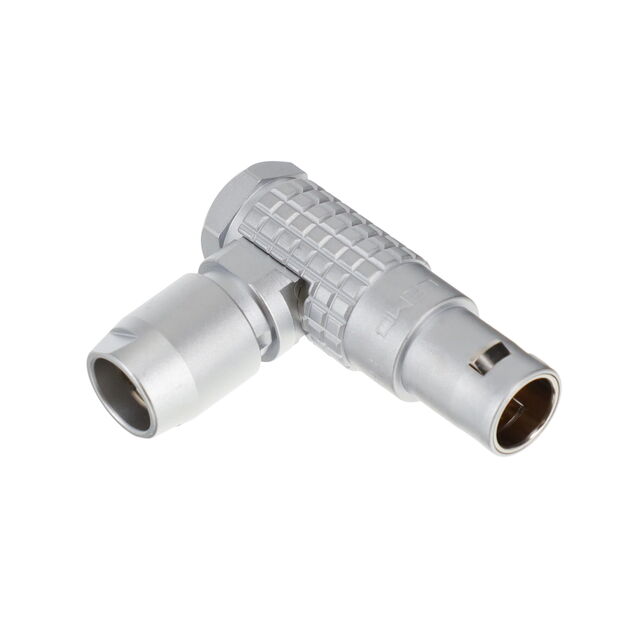

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FPG.1B.306.CLAD76

Active

LEMO

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FPG.1B.306.CLAD76

Backshell Material, Plating	Brass, Chrome
Cable Opening [Max] [diameter]	0.299 in
Cable Opening [Max] [diameter]	7.6 mm
Cable Opening [Min] [diameter]	0.283 in
Cable Opening [Min] [diameter]	7.2 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Material	Brass
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	6
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	306
Shielding	Shielded

FPG.1B Series

Part	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Shell Size - Insert	Current Rating (Amps)	Primary Material	Contact Finish - Mating	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Shell Finish	Material Flammability Rating	Ingress Protection	Connector Type	Contact Material	Color	Backshell Material, Plating	Mounting Type	Features	Fastening Type	Termination	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [custom]	Cable Opening [custom]
LEMO FPG.1B.304.CLAD52	4	-55 °C	250 °C	Shielded	304	10 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull
LEMO FPG.1B.306.CYCD42Z	6	-55 °C	250 °C	Shielded	306	7 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull	Crimp
LEMO FPG.1B.306.CLAD76	6	-55 °C	250 °C	Shielded	306	7 A	Metal	Gold	G	1 µm	39.4 µin	Brass				Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull		0.299 in	7.6 mm	0.283 in	7.2 mm
LEMO FPG.1B.307.CLAD76Z
LEMO FPG.1B.304.CYCD72	4	-55 °C	250 °C	Shielded	304	10 A	Metal	Gold	G	1 µm	39.4 µin	Brass				Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull	Crimp					0.244 in 0.283 in	6.2 mm 7.2 mm
LEMO FPG.1B.307.CLAD62	7	-55 °C	250 °C	Shielded	307	7 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull
LEMO FPG.1B.310.CLAD62	10	-55 °C	250 °C	Shielded	310	2.5 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull
LEMO FPG.1B.302.CLAD42	2	-55 °C	250 °C	Shielded	302	15 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull
LEMO FPG.1B.314.CLAD62Z	14	-55 °C	250 °C	Shielded	314	2 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull
LEMO FPG.1B.306.CLAD52Z	6	-55 °C	250 °C	Shielded	306	7 A	Metal	Gold	G	1 µm	39.4 µin	Brass	0.165 in 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Chrome	UL94 V-0	IP50	Male Pins Plug	Brass	Silver	Brass Chrome	Free Hanging (In-Line) Right Angle	Backshell	Push-Pull
