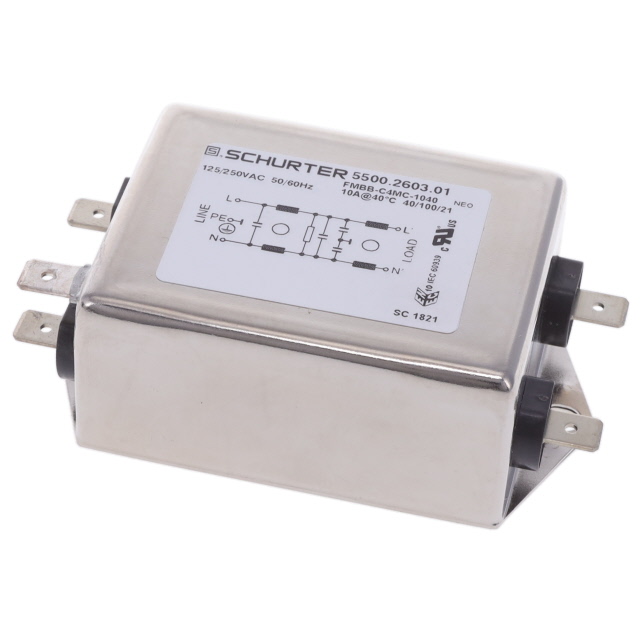

5500.2603.01

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 10A CHAS

Search across all available documentation for this part.

Active

SCHURTER Inc.

LINE FILTER 125V/250VAC 10A CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	5500.2603.01

Applications	Power Drive Systems, Inverters
Approval Agency	cURus, VDE, ENEC
Configuration	Two Stage
Current	10 A
Filter Type	Single Phase
Inductance	800 µH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	125 V, 250 V

Part	Current	Termination Style	Mounting Type	Inductance	Voltage - Rated AC	Configuration	Operating Temperature [custom]	Filter Type	Approval Agency	Applications
SCHURTER Inc. 5500.2603.01	10 A	Quick Connect	Chassis Mount	800 µH	125 V 250 V	Two Stage	-25 °C 100 °C	Single Phase	cURus ENEC VDE	Inverters Power Drive Systems

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 10 A 125V, 250V Two Stage Quick Connect
