02160023-000

Obsolete

TE Connectivity Measurement Specialties

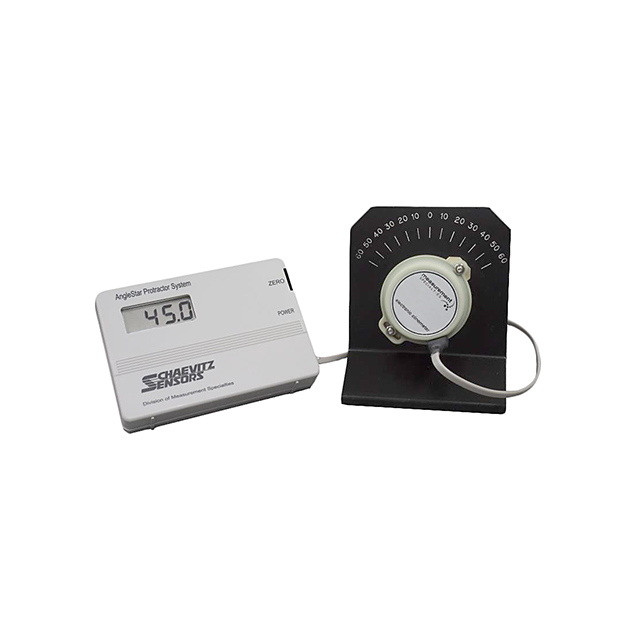

SENSOR ANGLE 39.98DEG CBL W/CONN

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR ANGLE 39.98DEG CBL W/CONN

Technical Specifications

Parameters and characteristics for this part

Specification	02160023-000

For Measuring	Angle
Linearity	1 %
Mounting Type	Chassis Mount
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-18 °C
Output	Digital Readout
Package / Case	Module
Rotation Angle - Electrical, Mechanical	39.98 °
Termination Style	Cable with Connector
Voltage - Supply [Max]	15 V
Voltage - Supply [Min]	9 V

Part	Rotation Angle - Electrical, Mechanical	Output	Linearity	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case	For Measuring	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Rotation Angle - Electrical, Mechanical [Min]	Rotation Angle - Electrical, Mechanical [Max]
TE Connectivity Measurement Specialties 02160023-000	39.98 °	Digital Readout	1 %	Chassis Mount	15 V	9 V	Module	Angle	Cable with Connector	-18 °C	55 °C
TE Connectivity Measurement Specialties 02160025-000		Digital Readout	1 %	Chassis Mount	15 V	9 V	Module	Angle	Cable with Connector	-18 °C	55 °C	0 °	90 °

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Sensor Angle Cable with Connector
