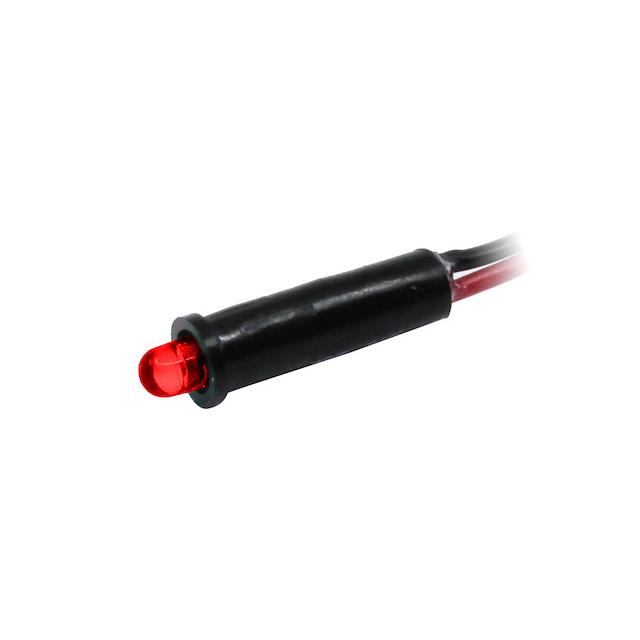

P205W-BR5H

Active

Visual Communications Company - VCC

PMI 0.156" SNAP-IN WIRE DIF RED

Search across all available documentation for this part.

Active

Visual Communications Company - VCC

PMI 0.156" SNAP-IN WIRE DIF RED

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Wavelength - Peak	Millicandela Rating	Lamp Color	Viewing Angle	Voltage	Current	Lens Style	Lens Size [diameter]	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Termination Style	Ratings
Visual Communications Company - VCC P205W-BR5H	Red	635 nm	14 mcd	Red	60 °	5.5 V	28 mA	Round with Domed Top	2.92 mm	Round	0.16 in	3.96 mm	LED	Wire Leads
Visual Communications Company - VCC P205W-DRG5H		567 nm 635 nm	3.7 mcd 4.3 mcd	Green Red	118 °	5 V	22 mA	Round with Domed Top	4.83 mm	Round	0.16 in	3.96 mm	LED
Visual Communications Company - VCC P205W-BR2		635 nm	14 mcd	Red	60 °	2 V		Round with Domed Top	4.83 mm	Round	0.16 in	3.96 mm	LED		DC
Visual Communications Company - VCC P205W-NWG28H		520 nm	2000 mcd	Green	45 °	28 V	16.5 mA	Round with Domed Top	4.83 mm	Round	0.16 in	3.96 mm	LED

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 3.62

General part information

LED Panel Indicator Red 60° 5.5V 28mA Wire Leads

Technical documentation and resources

No documents available
