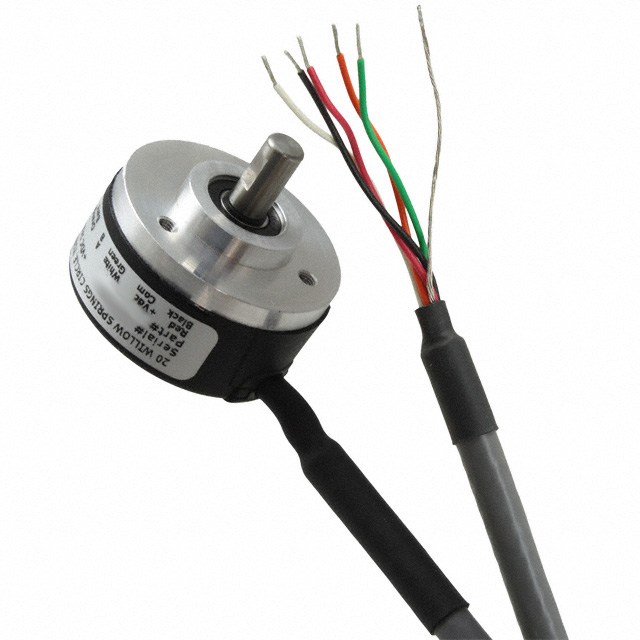

ZSD0500A

Active

RED LION CONTROLS

ROTARY ENCODER, PULSE GENERATOR, MECHANICAL, INCREMENTAL, 500 PPR, 0 DETENTS, WITHOUT PUSH SWITCH

Search across all available documentation for this part.

Active

RED LION CONTROLS

ROTARY ENCODER, PULSE GENERATOR, MECHANICAL, INCREMENTAL, 500 PPR, 0 DETENTS, WITHOUT PUSH SWITCH

Technical Specifications

Parameters and characteristics for this part

Specification	ZSD0500A

Actuator Type	0.25
Actuator Type	Flatted End
Detent	False
Encoder Type	Mechanical
Mounting Type	Chassis Mount, Motors
Output Type	Quadrature with Index (Incremental)
Pulses per Revolution	500
Termination Style	Cable
Voltage - Supply [Max]	28 V
Voltage - Supply [Min]	4.75 V

Part	Mounting Type	Pulses per Revolution	Voltage - Supply [Min]	Voltage - Supply [Max]	Actuator Type	Actuator Type	Termination Style	Detent	Output Type	Encoder Type
RED LION CONTROLS ZSD0500A	Chassis Mount Motors	500	4.75 V	28 V	0.25	Flatted End	Cable		Quadrature with Index (Incremental)	Mechanical

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 448.56
Newark	Each	1	$ 372.00

General part information

ROTARY ENCODER, PULSE GENERATOR, MECHANICAL, INCREMENTAL, 500 PPR, 0 DETENTS, WITHOUT PUSH SWITCH

Technical documentation and resources

No documents available
