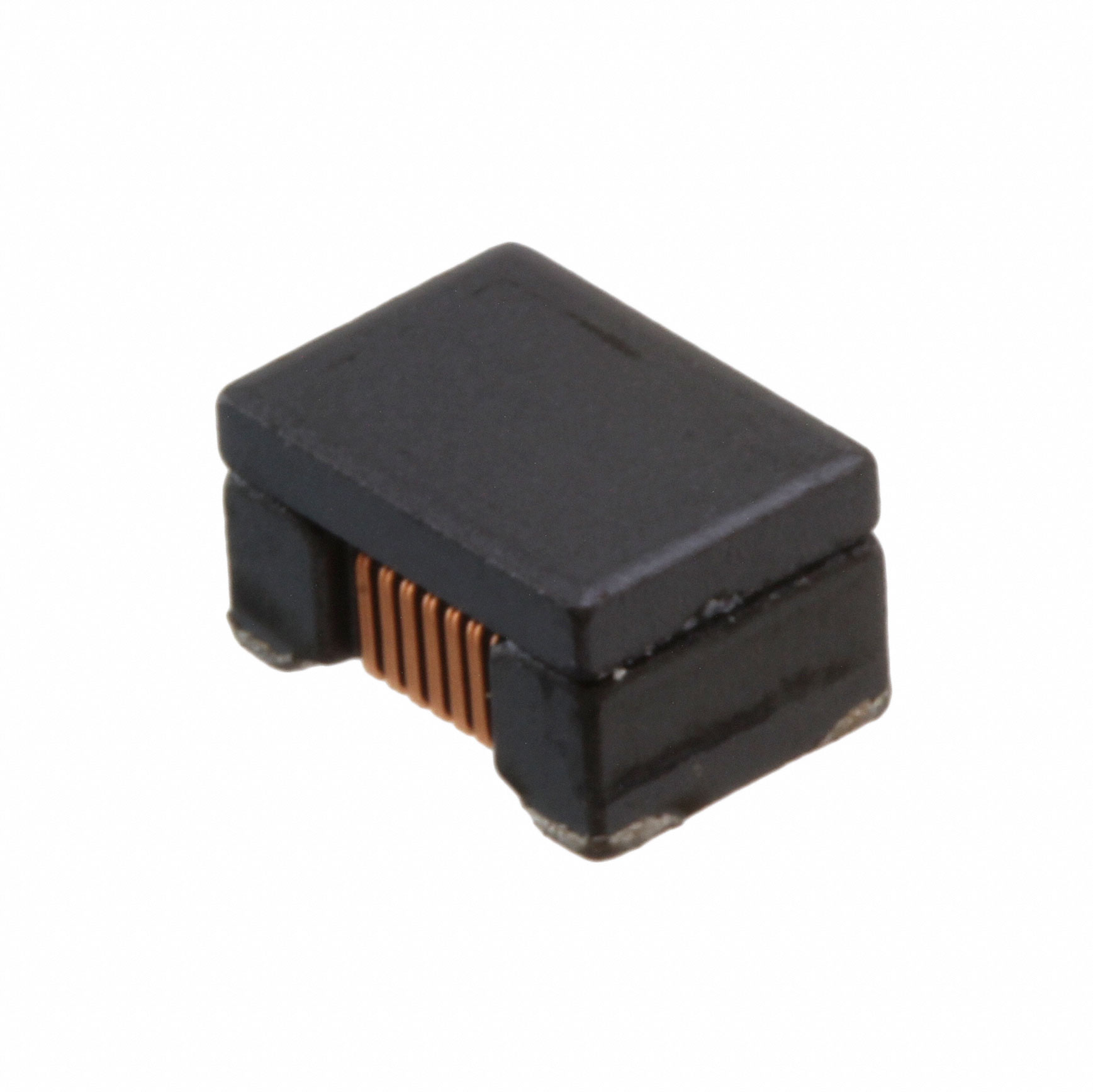

DLW43SH110XK2L
ActiveMurata Power Solutions Inc.
CMC 11UH 360MA 2LN SMD AEC-Q200
Deep-Dive with AI
Search across all available documentation for this part.
DLW43SH110XK2L
ActiveMurata Power Solutions Inc.
CMC 11UH 360MA 2LN SMD AEC-Q200
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DLW43SH110XK2L |
|---|---|
| Current Rating (Max) | 360 mA |
| DC Resistance (DCR) (Max) [Max] | 500 mOhm |
| Height (Max) | 2.8 mm |
| Height (Max) [Max] | 0.11 in |
| Inductance @ Frequency | 11 çH |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension [x] | 0.177 in |
| Size / Dimension [x] | 4.5 mm |
| Size / Dimension [y] | 3.2 mm |
| Size / Dimension [y] | 0.126 " |
| Voltage Rating - DC | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.02 | |
| 10 | $ 0.79 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.56 | |||
| Digi-ReelÛ | 1 | $ 1.02 | ||
| 10 | $ 0.79 | |||
| 25 | $ 0.72 | |||
| 50 | $ 0.66 | |||
| 100 | $ 0.62 | |||
| 250 | $ 0.56 | |||
| Tape & Reel (TR) | 500 | $ 0.53 | ||
| 1000 | $ 0.49 | |||
| 1500 | $ 0.46 | |||
| 2500 | $ 0.44 | |||
| 3500 | $ 0.42 | |||
| 5000 | $ 0.41 | |||
Description
General part information
DLW43SH Series
11 çH @ 100 kHz 2 Line Common Mode Choke Surface Mount 360mA DCR 500mOhm
