577102B04000G

Active

Boyd Laconia, LLC

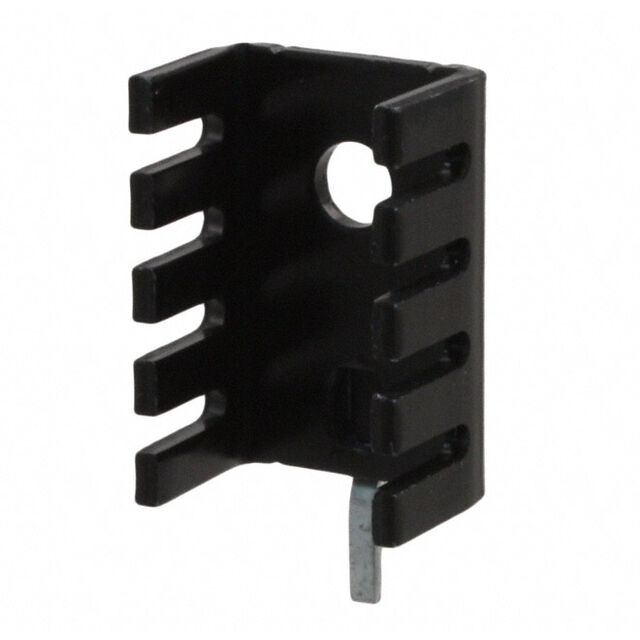

HEATSINK TO-220 W/TAB .375"

Search across all available documentation for this part.

Active

Boyd Laconia, LLC

HEATSINK TO-220 W/TAB .375"

Technical Specifications

Parameters and characteristics for this part

Specification	577102B04000G

Attachment Method	PC Pin, Bolt On
Fin Height	9.52 mm
Fin Height	0.375 in
Length	19.05 mm
Length	0.75 in
Material	Aluminum
Material Finish	Black Anodized
Package Cooled	TO-220
Power Dissipation @ Temperature Rise	1 W
Shape	Rectangular, Fins
Thermal Resistance @ Forced Air Flow	8 °C/W
Thermal Resistance @ Natural	25.9 °C/W
Type	Board Level, Vertical
Width [x]	13.21 mm
Width [x]	0.52 in

Part	Fin Height	Fin Height	Power Dissipation @ Temperature Rise	Width [x]	Width [x]	Material Finish	Thermal Resistance @ Natural	Package Cooled	Thermal Resistance @ Forced Air Flow	Attachment Method	Type	Length	Length	Shape	Material
Boyd Laconia, LLC 577102B04000G	9.52 mm	0.375 in	1 W	13.21 mm	0.52 in	Black Anodized	25.9 °C/W	TO-220	8 °C/W	Bolt On PC Pin	Board Level Vertical	19.05 mm	0.75 in	Rectangular Fins	Aluminum

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Sink TO-220 Aluminum 1.0W @ 30°C Board Level, Vertical
