PT06A-14-15P

Active

Amphenol Industrial Operations

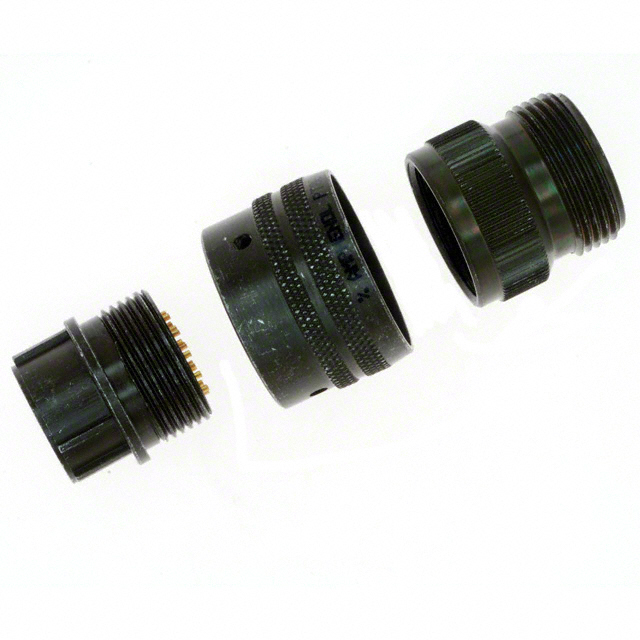

CONN PLUG MALE 15P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 10-101949-010

PT06A-14-15P

Active

Amphenol Industrial Operations

CONN PLUG MALE 15P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet 10-101949-010

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PT06A-14-15P

Applications	Military, Mass Transit, Instrumentation, Aerospace, Industrial
Backshell Material, Plating	Olive Drab Cadmium, Aluminum
Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Fastening Type	Bayonet Lock
Features	Coupling Nut, Backshell
Insert Material	Neoprene
Mounting Type	Free Hanging (In-Line)
Number of Positions	15
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Qualification	MIL-DTL-26482 Series I
Shell Finish	Olive Drab Chromate over Cadmium
Shell Material	Aluminum
Shell Size - Insert [Max]	15
Shell Size - Insert [Min]	14
Shielding	Unshielded

PT06A Series

...

Part	Mounting Type	Connector Type	Shielding	Color	Features	Number of Positions	Backshell Material, Plating	Insert Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Qualification	Orientation	Contact Finish - Mating	Fastening Type	Shell Material	Contact Material	Shell Finish	Applications	Housing Color	Type	Contact Size	Contact Shape	Contact Type	Shell Size - Insert	Note	Shell Size - Insert [Max] [custom]	Shell Size - Insert [Min] [custom]	Voltage Rating	Number of Positions	Shell Size - Insert [Max] [diameter]	Shell Size - Insert [Min] [diameter]
Amphenol Industrial Operations PT06A14-18P-023	Free Hanging (In-Line)	Male Pins Plug	Unshielded	Silver	Backshell Coupling Nut	18	Aluminum Electroless Nickel	Neoprene	14	18	-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Electroless Nickel	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT06A10-6P-SR-LC	Free Hanging (In-Line)	Plug Housing	Unshielded		Backshell Coupling Nut	6		Neoprene			-55 °C	125 °C		MIL-DTL-26482 Series I	N		Bayonet Lock	Aluminum		Chromate over Cadmium		Olive Drab	For Male Pins	20	Circular	Crimp	10-6	Contacts Not Included
Amphenol Industrial Operations PT06A-14-19S(SR)	Free Hanging (In-Line)	Female Sockets Plug	Unshielded	Olive Drab	Strain Relief	19	Aluminum Olive Drab Cadmium	Neoprene			-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military								19	14
Amphenol Industrial Operations PT06A12-4P-SR	Free Hanging (In-Line)	Male Pins Plug	Unshielded	Olive Drab	Strain Relief	4	Aluminum Olive Drab Cadmium	Neoprene			-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit						12-4
Amphenol Industrial Operations PT06A16-23P-470	Free Hanging (In-Line)	Male Pins Plug	Unshielded	Black		23	Aluminum Black Zinc Cobalt	Neoprene	16	23	-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Black Zinc Cobalt	Aerospace Communication Systems Industrial Instrumentation Mass Transit										600 VAC
Amphenol Industrial Operations PT06A-14-15P	Free Hanging (In-Line)	Male Pins Plug	Unshielded	Olive Drab	Backshell Coupling Nut	15	Aluminum Olive Drab Cadmium	Neoprene	14	15	-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Olive Drab Chromate over Cadmium	Aerospace Industrial Instrumentation Mass Transit Military
Amphenol Industrial Operations PT06A-8-2S(470)	Free Hanging (In-Line)	Female Sockets Plug	Unshielded	Black	Backshell Cable Clamp Coupling Nut	2	Aluminum Black Zinc Cobalt	Neoprene			-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Black Zinc Cobalt	Aerospace Industrial Instrumentation Mass Transit Military						8-2
Amphenol Industrial Operations PT06A18-32PY	Free Hanging (In-Line)	Male Pins Plug	Unshielded	Olive Drab			Aluminum Olive Drab Cadmium	Neoprene	18	32	-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	Y	Gold	Bayonet Lock	Aluminum	Copper Alloy	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit
Amphenol Industrial Operations PT06A-12-3S(025)	Free Hanging (In-Line)	Female Sockets Plug	Unshielded	Black	Backshell Coupling Nut		Aluminum Black Zinc Cobalt	Neoprene			-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Black Zinc Cobalt	Aerospace Industrial Instrumentation Mass Transit Military						12-3
Amphenol Industrial Operations PT06A20-16S-SR	Free Hanging (In-Line)	Female Sockets Plug	Unshielded	Olive Drab	Strain Relief		Aluminum Olive Drab Cadmium	Neoprene			-55 °C	125 °C	Metal	MIL-DTL-26482 Series I	N	Gold	Bayonet Lock	Aluminum	Copper Alloy	Olive Drab Chromate over Cadmium	Aerospace Communication Systems Industrial Instrumentation Mass Transit											16	20	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 26.44
		10	$ 23.15
		100	$ 20.72

Description

General part information

PT06A Series

15 Position Circular Connector Plug, Male Pins Solder Cup
