1792511

Active

Phoenix Contact

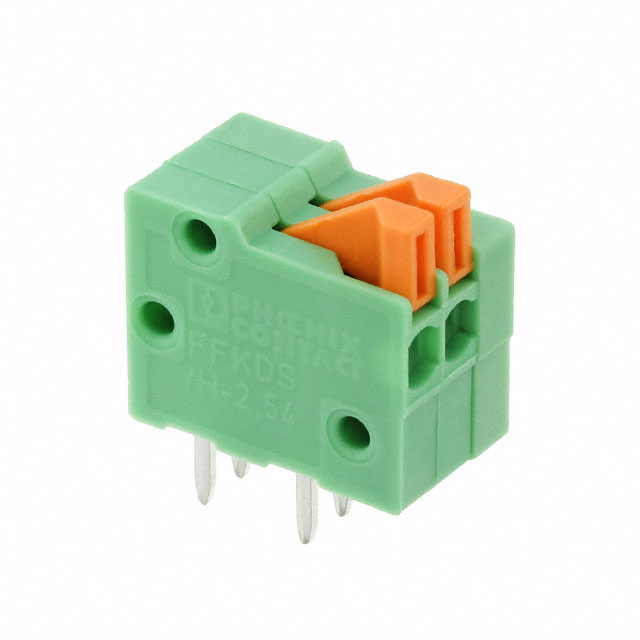

FIXED TERMINAL BLOCKS FFKDSA1/H-2.54- 2

Search across all available documentation for this part.

Active

Phoenix Contact

FIXED TERMINAL BLOCKS FFKDSA1/H-2.54- 2

Technical Specifications

Parameters and characteristics for this part

Specification	1792511

Color	Green
Current	6 A
Features	Lever Actuated, Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Positions Per Level	2
Voltage	150 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	20 AWG
Wire Termination	Screwless - Spring Cage, Tension Clamp

Fixed Terminal Blocks FFKDSA1/V1-5.08-24

Part	Color	Mounting Type	Current	Mating Orientation	Pitch [x]	Pitch [x]	Voltage	Features	Wire Termination	Positions Per Level	Wire Gauge [Min]	Wire Gauge [Max]
Phoenix Contact 1792511	Green	Through Hole	6 A	Horizontal with Board	2.54 mm	0.1 in	150 V	Interlocking (Side) Lever Actuated	Screwless - Spring Cage Tension Clamp	2	20 AWG	26 AWG
