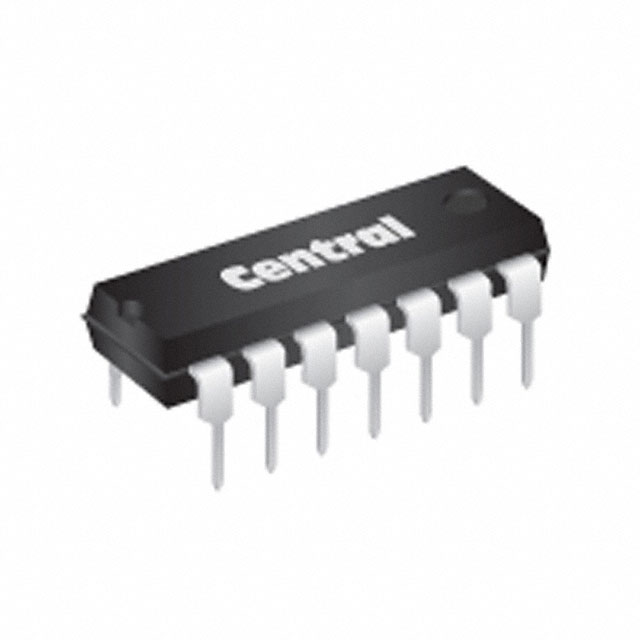

MPQ2222A PBFREE

Active

Central Semiconductor Corp

TRANS 4NPN 40V 0.5A

Search across all available documentation for this part.

Active

Central Semiconductor Corp

TRANS 4NPN 40V 0.5A

Technical Specifications

Parameters and characteristics for this part

Specification	MPQ2222A PBFREE

Current - Collector (Ic) (Max) [Max]	500 mA
Current - Collector Cutoff (Max) [Max]	0.01 µA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	100
Frequency - Transition	200 MHz
Mounting Type	Through Hole
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	14-DIP
Package / Case [x]	0.3 "
Package / Case [y]	7.62 mm
Power - Max [Max]	650 mW
Supplier Device Package	TO-116
Transistor Type	4 NPN (Quad)
Vce Saturation (Max) @ Ib, Ic	1 V
Voltage - Collector Emitter Breakdown (Max)	40 V

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector Cutoff (Max) [Max]	Frequency - Transition	Mounting Type	Package / Case	Package / Case [y]	Package / Case [x]	Vce Saturation (Max) @ Ib, Ic	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector (Ic) (Max) [Max]	Transistor Type	Voltage - Collector Emitter Breakdown (Max)	Power - Max [Max]
Central Semiconductor Corp MPQ2222A PBFREE	TO-116	150 °C	-65 °C	0.01 µA	200 MHz	Through Hole	14-DIP	7.62 mm	0.3 "	1 V	100	500 mA	4 NPN (Quad)	40 V	650 mW

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	275	$ 3.31

General part information

Bipolar (BJT) Transistor Array 4 NPN (Quad) 40V 500mA 200MHz 650mW Through Hole TO-116
