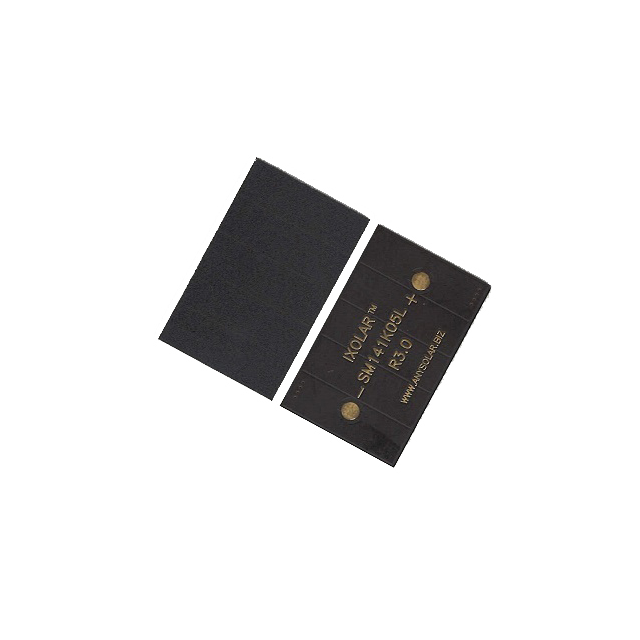

SM141K05L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 154MW 3.42V
Deep-Dive with AI
Search across all available documentation for this part.
SM141K05L
ActiveANYSOLAR Ltd
MONOCRYST SOLAR CELL 154MW 3.42V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM141K05L |
|---|---|
| Current - Short Circuit (Isc) | 58.6 mA |
| Current @ Pmpp | 55 mA |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Cells |
| Power (Watts) - Max [Max] | 154 mW |
| Size / Dimension [x] | 35 mm |
| Size / Dimension [x] | 1.378 " |
| Size / Dimension [y] | 22 mm |
| Size / Dimension [y] | 0.866 in |
| Size / Dimension [z] | 0.083 in |
| Size / Dimension [z] | 2.1 mm |
| Type | Monocrystalline |
| Voltage - Open Circuit | 3.42 V |
| Voltage @ Pmpp | 2.79 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 5.67 | |
| 25 | $ 4.50 | |||
| 50 | $ 4.28 | |||
| 100 | $ 4.09 | |||
| 250 | $ 3.82 | |||
| 500 | $ 3.63 | |||
Description
General part information
SM141K05 Series
Monocrystalline Solar Cell 154 mW 3.42 V
