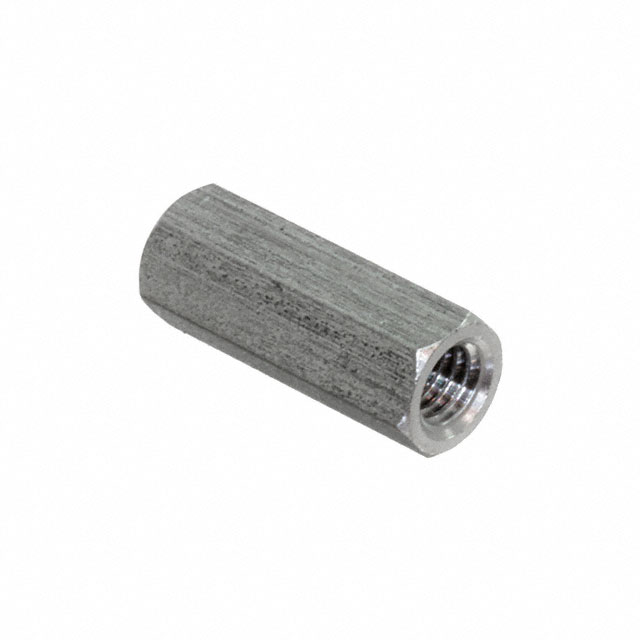

M1314-3005-SS-20
ActiveRAF Electronic Hardware
6MM HEX X 17MM X M3 THD
Deep-Dive with AI
Search across all available documentation for this part.
M1314-3005-SS-20
ActiveRAF Electronic Hardware
6MM HEX X 17MM X M3 THD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M1314-3005-SS-20 |
|---|---|
| Between Board Height | 0.669 in |
| Between Board Height | 17 mm |
| Diameter - Outside [diameter] | 0.236 in |
| Diameter - Outside [diameter] | 6 mm |
| Gender | Female |
| Length - Overall | 17 mm |
| Length - Overall | 0.669 in |
| Material | Stainless Steel |
| Plating | Passivated |
| Screw, Thread Size | M3x0.5 |
| Threaded/Unthreaded | Threaded |
| Type | Hex Standoff |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.24 | |
| 5 | $ 3.07 | |||
| 10 | $ 2.99 | |||
| 25 | $ 2.91 | |||
| 50 | $ 2.83 | |||
| 100 | $ 2.67 | |||
| 250 | $ 2.51 | |||
Description
General part information
M1314 Series
Hex Standoff Threaded M3x0.5 Stainless Steel 0.669" (17.00mm)
Documents
Technical documentation and resources
No documents available
