1424545

Active

Phoenix Contact

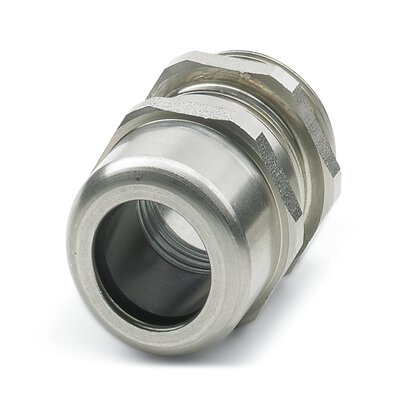

CABLE GLAND 15-21MM M32 S STEEL

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 15-21MM M32 S STEEL

Technical Specifications

Parameters and characteristics for this part

Specification	1424545

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP69, IP66, IP68
Material	Stainless Steel
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	21 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.827 in
Outside Cable Diameter (Min) [Min] [diameter]	0.591 "
Outside Cable Diameter (Min) [Min] [diameter]	15 mm
Thread Length	8 mm
Thread Length	0.315 in
Thread Size	M32x1.5
Type	Cable Gland

Part	Color	Thread Size	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Material	Thread Length	Thread Length	Includes	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)
Phoenix Contact 1424545	Silver	M32x1.5	Cable Gland	0.591 "	15 mm	Stainless Steel	8 mm	0.315 in	O-Ring Seal	IP66 IP68 IP69	100 °C	-40 °C	21 mm	0.827 in
Phoenix Contact 1411136	Black	M32	Cable Gland	0.591 "	15 mm	Polyamide (PA) Nylon	10 mm	0.394 in	Seal	IP66/IP68	100 °C	-40 °C	21 mm	0.827 in
Phoenix Contact 1424473	Gray	M32x1.5	Cable Gland	0.709 in	18.01 mm	Polyamide (PA) Nylon	15 mm	0.591 in	Seal	IP66/IP68	100 °C	-40 °C		0.984 in	25 mm
Phoenix Contact 1424483	Black	M32x1.5	Cable Gland	0.709 in	18.01 mm	Polyamide (PA) Nylon	16 mm	0.63 in	Seal	IP66/IP68	100 °C	-40 °C		0.984 in	25 mm
Phoenix Contact 1411166	Silver	M32	Cable Gland	0.591 "	15 mm	Brass Nickel Plated	8 mm	0.315 in	O-Ring Seal	IP66 IP68 IP69	100 °C	-40 °C	21 mm	0.827 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.74

General part information

Cable Gland Stainless Steel M32x1.5 Silver
