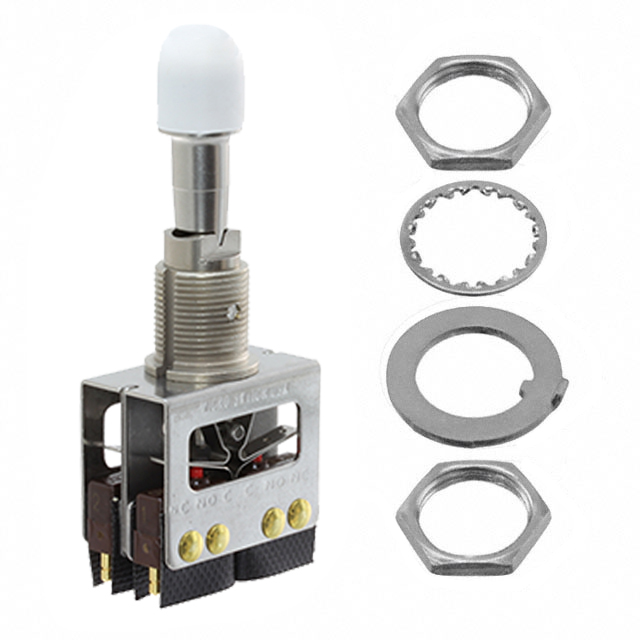

64AT34-7E

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PDT 1A 30V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsSealed,High Accuracy Switch Line Guide Datasheet

64AT34-7E

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE 4PDT 1A 30V

Deep-Dive with AI

DocumentsSealed,High Accuracy Switch Line Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	64AT34-7E

Actuator Length [x]	30 mm
Actuator Type	Locking Lever
Bushing Thread	15/32-32
Circuit	4PDT
Current Rating (Amps)	1 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	Mom-Off-Mom
Termination Style	Quick Connect - 0.058 in (Round)
Voltage Rating - DC	30 V

64AT3 Series

Part	Termination Style	Switch Function	Circuit	Actuator Type	Panel Cutout Dimensions [diameter]	Bushing Thread	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - AC	Illumination	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC
Honeywell Sensing and Productivity Solutions 64AT315-1A	Solder Turret	On-Off-On	4PDT	Locking Lever	12.4 mm	15/32-32	1 A	29.97 mm	125 V	Non-Illuminated
Honeywell Sensing and Productivity Solutions 64AT300-5N	Quick Connect - 0.058 in (Round)	On-Off-Mom	4PDT	Locking Lever	12.4 mm	15/32-32	7 A	30 mm	115 V	Non-Illuminated	6000 Cycles	85 °C	-55 °C	28 V
Honeywell Sensing and Productivity Solutions 64AT34-7E	Quick Connect - 0.058 in (Round)	Mom-Off-Mom	4PDT	Locking Lever	12.4 mm	15/32-32	1 A	30 mm		Non-Illuminated	6000 Cycles	85 °C	-55 °C	30 V
Honeywell Sensing and Productivity Solutions 64AT34-1A
Honeywell Sensing and Productivity Solutions 64AT34-7	Quick Connect - 0.058 in (Round)	Mom-Off-Mom	4PDT	Standard Round	12.4 mm	15/32-32	1 A	17.27 mm		Non-Illuminated				30 V
Honeywell Sensing and Productivity Solutions 64AT300-5	Quick Connect - 0.058 in (Round)	On-Off-Mom	4PDT	Standard Round	12.4 mm	15/32-32	7 A	17.27 mm	115 V	Non-Illuminated	6000 Cycles	85 °C	-55 °C	28 V
Honeywell Sensing and Productivity Solutions 64AT305-5M	Solder Turret	On-Off-Mom	6PDT	Locking Lever	12.4 mm	15/32-32	7 A	26.67 mm	115 V	Non-Illuminated				28 V
Honeywell Sensing and Productivity Solutions 64AT34-7L	Quick Connect - 0.058 in (Round)	Mom-Off-Mom	4PDT	Locking Lever	12.4 mm	15/32-32	1 A	30 mm		Non-Illuminated				30 V
Honeywell Sensing and Productivity Solutions 64AT303-3	Solder Turret	On-On	4PDT	Standard Round	12.4 mm	15/32-32	7 A	17.27 mm	115 V	Non-Illuminated				28 V
Honeywell Sensing and Productivity Solutions 64AT303-7	Solder Turret	Mom-Off-Mom	4PDT	Standard Round	12.4 mm	15/32-32	7 A	17.27 mm	115 V	Non-Illuminated				28 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	20	$ 664.87

Description

General part information

64AT3 Series

Toggle Switch 4PDT Panel Mount

Documents

Technical documentation and resources

Sealed,High Accuracy Switch Line Guide

Datasheet
