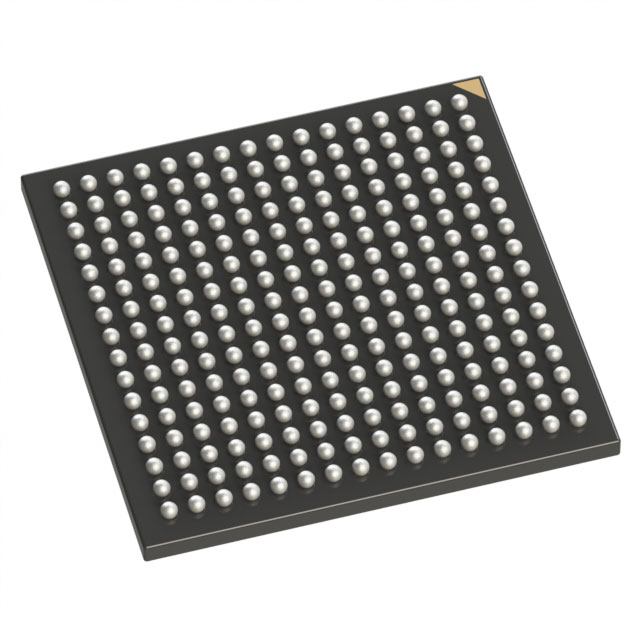

M5-320/192-10SAI

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 320MC 10NS 256SBGA

Search across all available documentation for this part.

Obsolete

LATTICE SEMICONDUCTOR

IC CPLD 320MC 10NS 256SBGA

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Mounting Type	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Programmable Type	Number of Macrocells	Package / Case	Delay Time tpd(1) Max [Max]
LATTICE SEMICONDUCTOR M5-320/192-10SAI	256-SBGA (27x27)	Surface Mount	192	85 °C	-40 °C	4.5 V	5.5 V	In System Programmable	320	256-LBGA	10 ns
LATTICE SEMICONDUCTOR M5-320/192-10SAC	256-SBGA (27x27)	Surface Mount	192	70 °C	0 °C	4.75 V	5.25 V	In System Programmable	320	256-LBGA	10 ns
LATTICE SEMICONDUCTOR M5-320/192-12SAC	256-SBGA (27x27)	Surface Mount	192	70 °C	0 °C	4.75 V	5.25 V	In System Programmable	320	256-LBGA	12 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

IC CPLD 320MC 10NS 256SBGA
