800-1809-2-SJT0-BL-00300

Obsolete

CnC Tech, LLC

CRD 18AWG IEC320-C13 - CBL 9.84'

Search across all available documentation for this part.

Obsolete

CnC Tech, LLC

CRD 18AWG IEC320-C13 - CBL 9.84'

Technical Specifications

Parameters and characteristics for this part

Specification	800-1809-2-SJT0-BL-00300

1st Connector	IEC 320-C13
2nd Connector	Cable
Approval Agency Marking	CSA, UL
Approved Countries	United States, Canada
Color	Black
Cord Type	SJT
Current Rating (Amps)	10 A
Features	Drain Wire
Length [x]	9.84 ft
Length [x]	3 m
Number of Conductors	3
Operating Temperature	105 C
Shielding	Shielded
Style	Female Sockets (Slots) to Leads
Voltage Rating	250 VDC
Wire Gauge	18 AWG

Part	1st Connector	Shielding	Number of Conductors	2nd Connector	Features	Style	Length [x]	Length [x]	Voltage Rating	Approval Agency Marking	Approved Countries	Cord Type	Operating Temperature	Wire Gauge	Current Rating (Amps)	Color	Length	Length
CnC Tech, LLC 800-1809-2-SJT0-BL-00300	IEC 320-C13	Shielded	3	Cable	Drain Wire	Female Sockets (Slots) to Leads	9.84 ft	3 m	250 VDC	CSA UL	Canada United States	SJT	105 C	18 AWG	10 A	Black
CnC Tech, LLC 800-1809-2-SJT0-BL-00300-1	IEC 320-C13	Unshielded	3	Cable		Female Sockets (Slots) to Leads	9.84 ft	3 m	250 VDC	cUL UL	Canada United States	SJT	105 C	18 AWG	10 A	Black
CnC Tech, LLC 800-1809-2-SJT0-BL-00200	IEC 320-C13	Shielded	3	Cable	Drain Wire	Female Sockets (Slots) to Leads	6.56 ft	2 m	250 VDC	CSA UL	Canada United States	SJT	105 C	18 AWG	10 A	Black
CnC Tech, LLC 800-1809-2-SPT2-BL-0008F	NEMA 1-15P	Unshielded	2	Cable		Male Pins (Blades) to Leads	8 ft	2.44 m	125 VDC	CSA UL	Canada United States	SPT-2	105 C	18 AWG	10 A	Black
CnC Tech, LLC 800-1809-0-SPT2-BL-0006F	NEMA 1-15P	Unshielded	2	Cable		Male Pins (Blades) to Leads			125 VDC	CSA UL	Canada United States	SPT-2	60 °C	18 AWG		Black	6 ft	1.83 m
CnC Tech, LLC 800-1809-2-SJT0-BL-00200-1	IEC 320-C13	Unshielded	3	Cable		Female Sockets (Slots) to Leads	6.56 ft	2 m	250 VDC	cUL UL	Canada United States	SJT	105 C	18 AWG	10 A	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

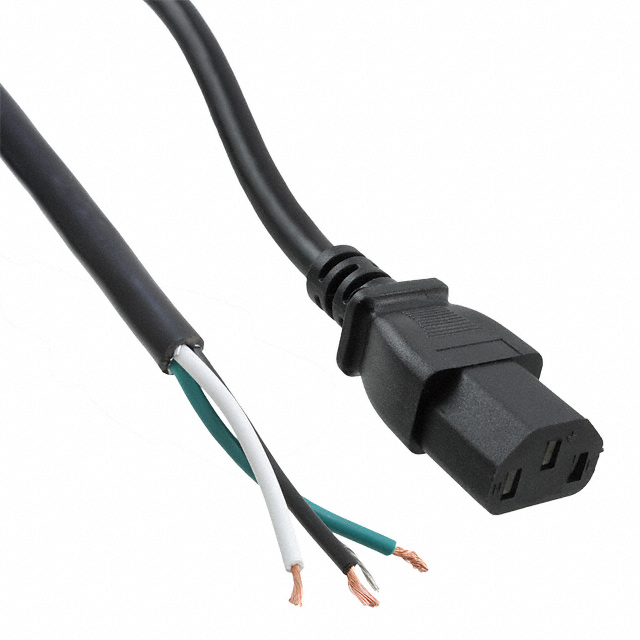

9.84' (3.00m) Power Cord Black IEC 320-C13 To Cable SJT

Technical documentation and resources
