Q-0600W000S006i

Active

Amphenol Custom Cable

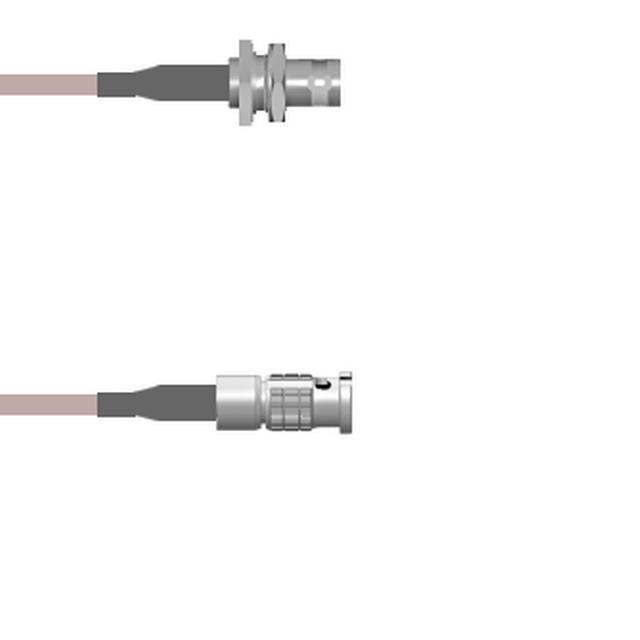

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0600W000S006i

Active

Amphenol Custom Cable

CBL ASSY BNC-HDBNC JACK-PLUG 6"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0600W000S006i

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	HD-BNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-179
Color	Copper
Features	Shielded
Frequency - Max [Max]	3 GHz
Length	152.4 mm
Length	6 in
Overall Impedance	75 Ohms
Style	BNC to HD-BNC

Q-0600W0 Series

Part	Style	Length	Length	Length	2nd Connector	Frequency - Max [Max]	1st Connector Mounting Type	Features	1st Contact Gender	2nd Contact Gender	Cable Type	Overall Impedance	1st Connector	2nd Connector Mounting Type	Color	1st Connector Mounting Feature	Length [x]	Length [x]
Amphenol Custom Cable Q-0600W000S003M	BNC to HD-BNC	3 m	118.1 in	9.8 '	HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S048i	BNC to HD-BNC	1200 mm	48 in	4 ft	HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S006i	BNC to HD-BNC	152.4 mm	6 in		HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S002M	BNC to HD-BNC	2 m	78.7 in	6.6 ft	HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S2.5M	BNC to HD-BNC	2.5 m	98.4 in	8.2 '	HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S024i	BNC to HD-BNC	609.6 mm	24 "		HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S012i	BNC to HD-BNC	304.8 mm	12 "		HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S072i	BNC to HD-BNC	1.8 m	72 in	6 ft	HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-0600W000S.25M	BNC to HD-BNC				HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut	9.843 "	250 mm
Amphenol Custom Cable Q-0600W000S001M	BNC to HD-BNC	1 m	39.4 in	3.3 ft	HD-BNC Plug	3 GHz	Panel Mount	Shielded	Female	Male	RG-179	75 Ohms	BNC Jack	Free Hanging (In-Line)	Copper	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 119.44
		25	$ 117.12
		50	$ 114.80
		100	$ 112.48
		250	$ 110.16

Description

General part information

Q-0600W0 Series

Cable Assembly Coaxial BNC to HD-BNC RG-179 6.000" (152.40mm)

Documents

Technical documentation and resources

No documents available
