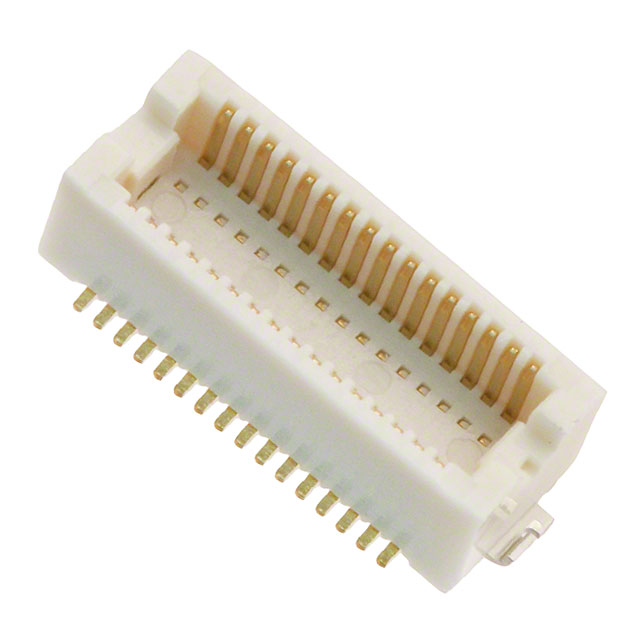

DF12(4.0)-32DP-0.5V(86)

Obsolete

Hirose Electric USA, Inc.

CONN HDR 32POS SMD GOLD

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN HDR 32POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	DF12(4.0)-32DP-0.5V(86)

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Features	Solder Retention, Board Guide
Height Above Board	0.13 in
Height Above Board	3.3 mm
Mated Stacking Heights	4 mm
Mounting Type	Surface Mount
Number of Rows	2
Pitch [x]	0.5 mm
Pitch [x]	0.02 in

Part	Connector Type	Features	Mounting Type	Pitch [x]	Pitch [x]	Mated Stacking Heights	Height Above Board	Height Above Board	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Number of Positions
Hirose Electric USA, Inc. DF12(4.0)-40DP-0.5V(22)
Hirose Electric USA, Inc. DF12(4.0)-32DP-0.5V(86)	Header Outer Shroud Contacts	Board Guide Solder Retention	Surface Mount	0.5 mm	0.02 in	4 mm	0.13 in	3.3 mm	Gold	8 çin	0.203 çm	2
Hirose Electric USA, Inc. DF12(4.0)-50DP-0.5V(86)	Header Outer Shroud Contacts	Board Guide Solder Retention	Surface Mount	0.5 mm	0.02 in	4 mm	0.13 in	3.3 mm	Gold	8 çin	0.203 çm	2	50
Hirose Electric USA, Inc. DF12(4.0)-40DP-0.5V(86)	Header Outer Shroud Contacts	Board Guide Solder Retention	Surface Mount	0.5 mm	0.02 in	4 mm	0.13 in	3.3 mm	Gold	8 çin	0.203 çm	2	40
Hirose Electric USA, Inc. DF12(4.0)-20DP-0.5V(86)	Header Outer Shroud Contacts	Board Guide Solder Retention	Surface Mount	0.5 mm	0.02 in	4 mm	0.13 in	3.3 mm	Gold	8 çin	0.203 çm	2	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

32 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
