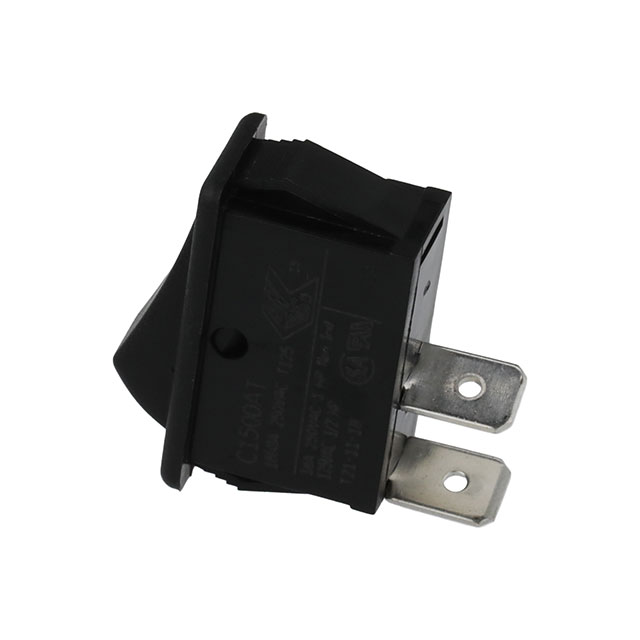

C1500ATAAA
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 20A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C1500ATAAA
ActiveBULGIN LIMITED
SWITCH ROCKER SPST 20A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C1500ATAAA |
|---|---|
| Actuator Type | Concave (Curved) |
| Approval Agency | CSA, UL |
| Circuit | SPST |
| Current Rating (Amps) | 20 A |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 28.3 mm |
| Panel Cutout Dimensions [y] | 11.6 mm |
| Switch Function | On-Off |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | - | 1 | $ 1.80 | |
| 10 | $ 1.61 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.45 | |||
| 100 | $ 1.39 | |||
| 250 | $ 1.33 | |||
| 500 | $ 1.24 | |||
| 1000 | $ 1.18 | |||
Description
General part information
C1500AT Series
Rocker Switch SPST 20A (AC/DC) 250 V Panel Mount, Snap-In
