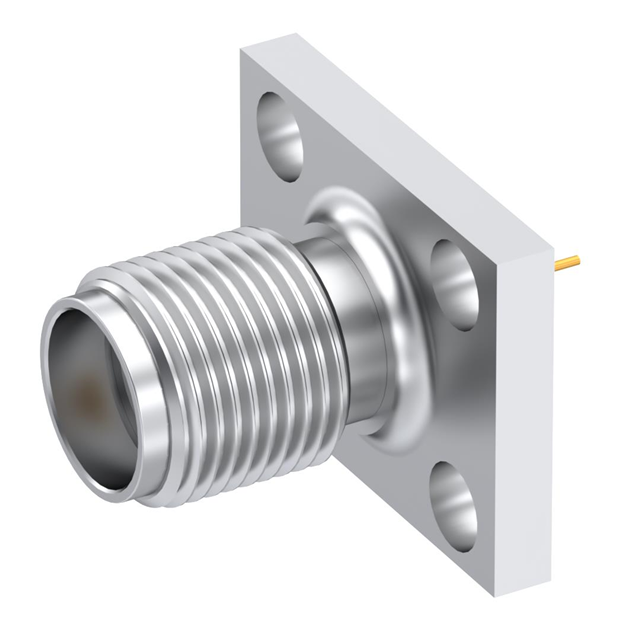

9376-9113-001

Active

Radiall USA, Inc.

SMA F STR SQF

Search across all available documentation for this part.

Active

Radiall USA, Inc.

SMA F STR SQF

Technical Specifications

Parameters and characteristics for this part

Specification	9376-9113-001

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Connector Type	Center Contact Material	Contact Termination	Connector Style	Center Contact Plating	Body Material	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Mating Cycles	Features	Number of Ports	Dielectric Material	Impedance	Frequency - Max [Max]	Shield Termination
Radiall USA, Inc. 9376-9113-001	Female Socket Jack	Beryllium Copper	Solder	SMA	Gold	Stainless Steel	Flange	-65 ░C	165 °C	500	Extended Insulation	1	Polytetrafluoroethylene (PTFE)	50 Ohms	18 GHz	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
