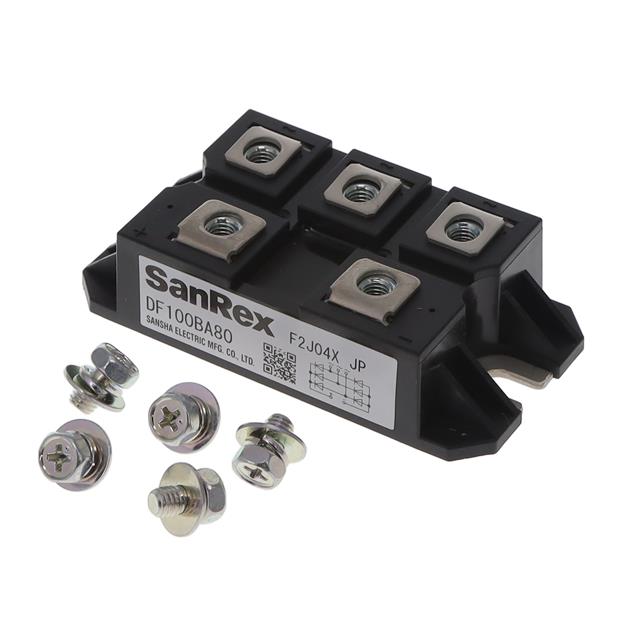

DF100BA80

Active

SanRex Corporation

DIODE MODULE 800V 100A

Search across all available documentation for this part.

Active

SanRex Corporation

DIODE MODULE 800V 100A

Technical Specifications

Parameters and characteristics for this part

Specification	DF100BA80

Current - Average Rectified (Io)	100 A
Current - Reverse Leakage @ Vr	10 mA
Diode Type	Three Phase
Mounting Type	Chassis Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.2 V
Voltage - Peak Reverse (Max) [Max]	800 V

Part	Voltage - Peak Reverse (Max) [Max]	Current - Reverse Leakage @ Vr	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Max) @ If	Diode Type	Current - Average Rectified (Io)	Technology	Mounting Type	Voltage - Peak Reverse (Max)	Supplier Device Package
SanRex Corporation DF100BA80	800 V	10 mA	Module	150 °C	-40 °C	1.2 V	Three Phase	100 A	Standard	Chassis Mount
SanRex Corporation DF100LB80	800 V	12 mA	Module	150 °C	-40 °C	1.3 V	Three Phase	100 A	Standard	Chassis Mount
SanRex Corporation DF100LA160		12 mA	Module	150 °C	-40 °C	1.3 V	Three Phase	100 A	Standard	Chassis Mount	1.6 kV
SanRex Corporation DF100NB160		8 mA	5-PowerDIP Module	150 °C	-40 °C	1.35 V	Three Phase	100 A	Standard	Through Hole	1.6 kV	5-DIP
SanRex Corporation DF100AA160		15 mA	Module	150 °C	-40 °C	1.2 V	Three Phase	100 A	Standard	Chassis Mount	1.6 kV

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Three Phase Standard 800 V Chassis Mount
