Technical Specifications
Parameters and characteristics for this part

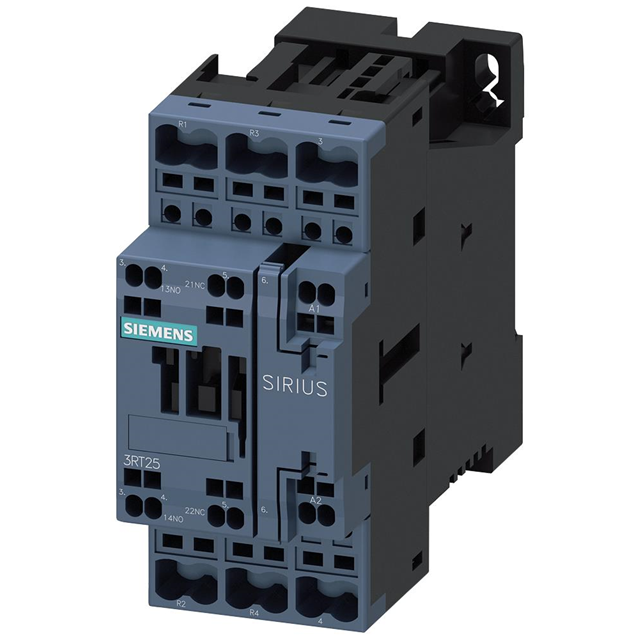

| Specification | 3RT25262BM40 |
|---|---|
| Coil Power | 5.9 W |
| Coil Voltage | 220 VDC |
| Contact Form | 4PST-2NO/2NC (2 Form A, 2 Form B) |
| Contact Rating (Current) | 25 A |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Must Operate Voltage | 176 VDC |
| Operate Time | 170 ms |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -25 °C |
| Release Time | 18 ms |
| Switching Voltage | 690 VAC |
| Termination Style | Spring Terminal |
3RT2526 Series
| Part | Operate Time | Termination Style | Must Operate Voltage | Coil Voltage | Features | Mounting Type | Contact Rating (Current) | Release Time | Switching Voltage [Max] | Coil Power | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Switching Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | 40 ms | Screw Terminal | 96 VAC | 120 VAC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 16 ms | 400 VAC | 87 VA | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | |
Siemens | 170 ms | Screw Terminal | 19.2 VDC | 24 VDC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 18 ms | 5.9 W | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 170 ms | Spring Terminal | 176 VDC | 220 VDC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 18 ms | 5.9 W | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 40 ms | Spring Terminal | 192 VAC | 240 VAC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 16 ms | 87 VA | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 40 ms | Spring Terminal | 88 VAC/DC | 110 VAC/DC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 16 ms | 77 VA | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 170 ms | Screw Terminal | 100 VDC | 125 VDC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 18 ms | 5.9 W | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 40 ms | Spring Terminal | 19.2 VAC | 24 VAC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 16 ms | 77 VA | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 170 ms | Screw Terminal | 88 VDC | 110 VDC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 18 ms | 5.9 W | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 40 ms | Screw Terminal | 19.2 VAC | 24 VAC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 16 ms | 81 VA | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC | |
Siemens | 40 ms | Screw Terminal | 184 VAC | 230 VAC | Auxiliary Contacts | Chassis Mount DIN Rail | 25 A | 16 ms | 77 VA | -25 °C | 60 °C | 4PST-2NO/2NC (2 Form A 2 Form B) | 690 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 354.98 | |
Description
General part information
3RT2526 Series
CONTACTOR S0 25A 220VDC 2NO/2NC
